Productomschrijving

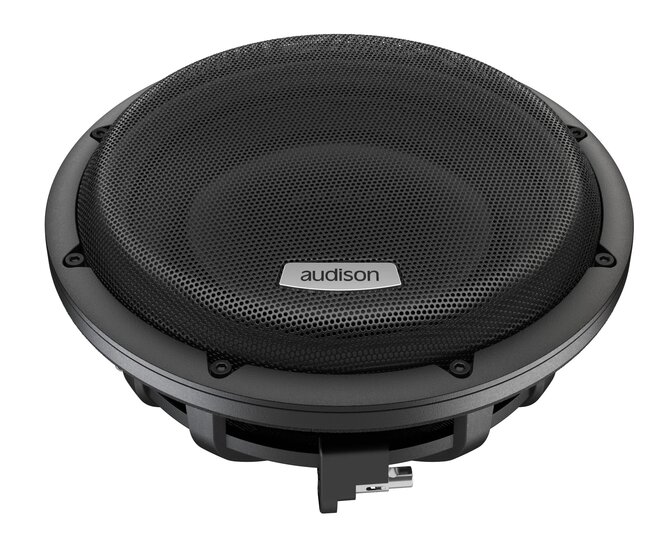

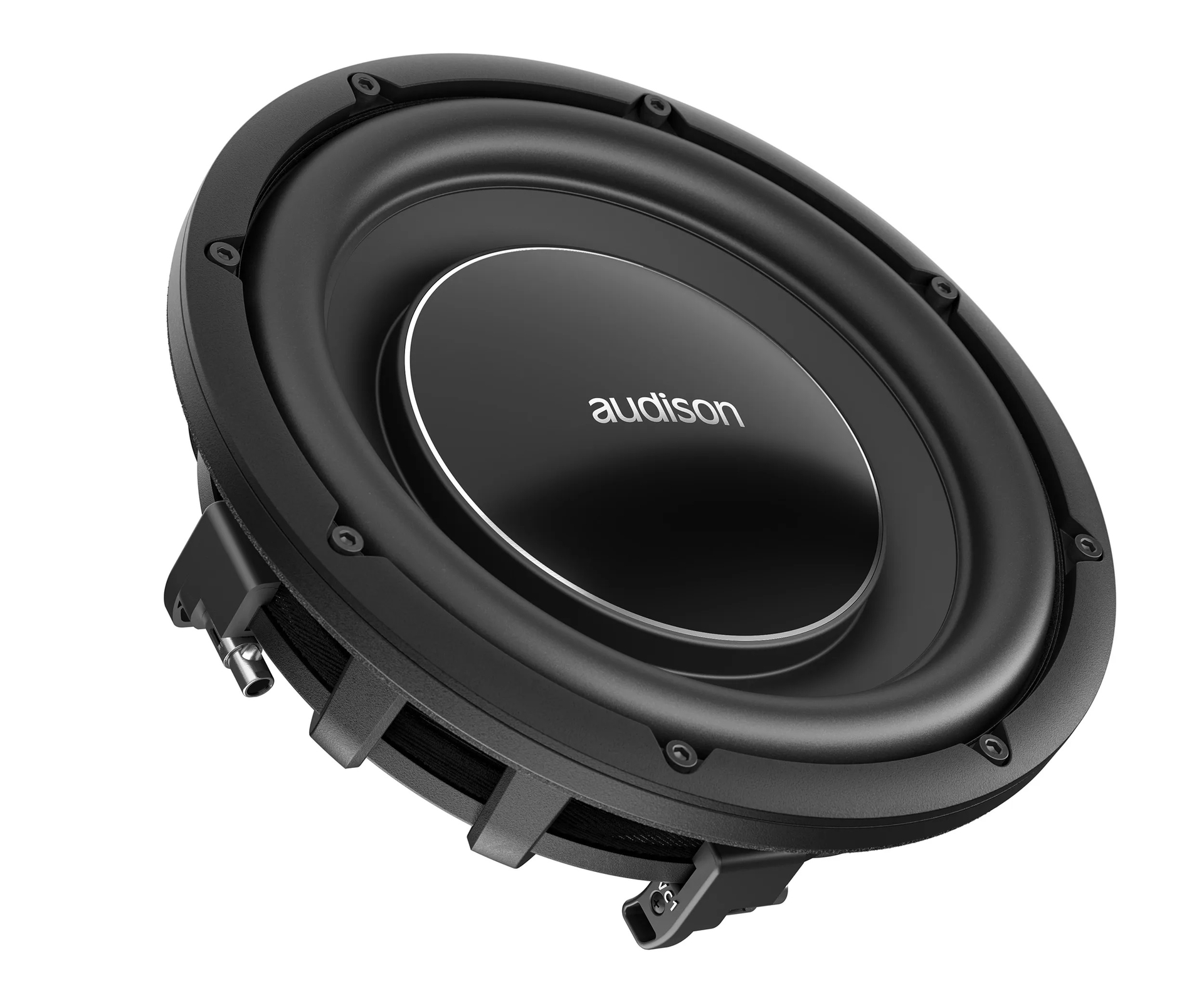

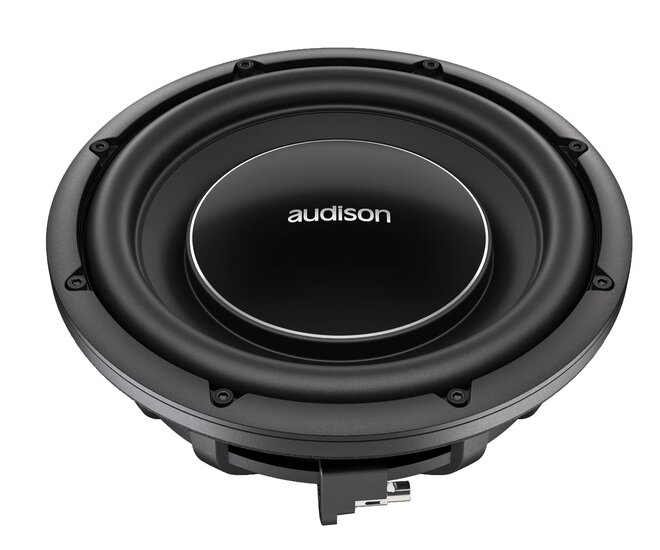

Audison Voce AV10D2-II "Inclusief grille"
10 inch / 25 cm subwoofer met grille
Frequentie bereik: 25 - 400 Hz
550 watts RMS / 1100 watts MAX
Impedantie: DVC 2 ohms ( 1 of 4 ohms)
Gevoeligheid: 83.5 dB
Inbouwopening: 232 mm
Inbouwdiepte: 83 mm
Kist informatie:
12 - 14 Liters Netto gesloten
Extra informatie:
1. 550 WATTS RMS continuous power handling
Exceptional thermal stability and mechanical robustness ensure reliable management of 550 WATTS RMS continuous power, allowing sustained high-performance bass output.
2. 1.5 in. (38.6 mm) CCAW voice coil (Copper-Clad Aluminum Wire)
Combines exceptional thermal handling with reduced mass, maximizing responsiveness, precision, and durability under demanding listening conditions
3. Airflow Venting Cooling (A.V.C.) prevents voice-coil overheating-related limitations
Proprietary AVC technology optimizes airflow and cooling through strategically placed internal channels, efficiently dissipating heat and maintaining consistent performance at high SPL.
4. Optimized for Compact Sealed Enclosures
Engineered to perform at its best in compact sealed enclosures (12–14 L / 0.4–0.5 ft³), offering deep, controlled bass response even in space-limited setups.
5. Protective Metal Mesh Grille Included
Comes with a durable black mesh grille and mounting screws, providing reliable cone protection without compromising acoustic transparency or visual elegance.
6. Radial Reinforcement Framework (R.R.F.)
Integrates internal structural rays beneath the cone, significantly increasing mechanical rigidity and effectively reducing deformation risks during high-excursion operations, ensuring consistent performance, precision, and reliability over time.
7. Die-cast aluminum basket with integrated cable-routing hooks
Robust aluminum basket maximizes rigidity and thermal dissipation, while integrated cable-management hooks facilitate clean installations even in confined spaces
8. Extended-Profile Dust Cap with VOCE II Styling
The enlarged dust cap, featuring refined detailing consistent with the VOCE II speaker range, is engineered through FEM simulation to optimize cone rigidity and structural damping.
9. Dual Integrated Cable Routing Hooks
Two molded guides built into the outer structure simplify neat and secure cable management. These hooks are entirely within the subwoofer’s footprint, ensuring compatibility with tight installation spaces.

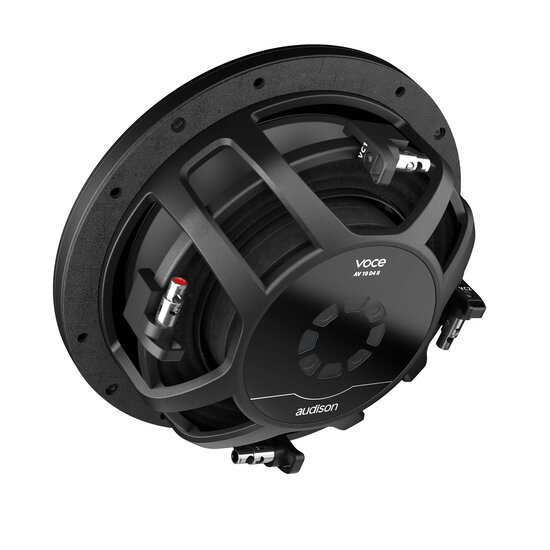

10. Die-Cast Aluminum Basket with Magnet Cover
Offers excellent mechanical damping, improved heat dissipation, and stable airflow, maintaining structural integrity and high performance over time.
11. Spring-Loaded Horizontal Terminals (8 AWG Ready)
Side-by-side heavy-duty terminals allow short, clean wiring paths and simplified series or parallel configurations, supporting high-current cable connections.

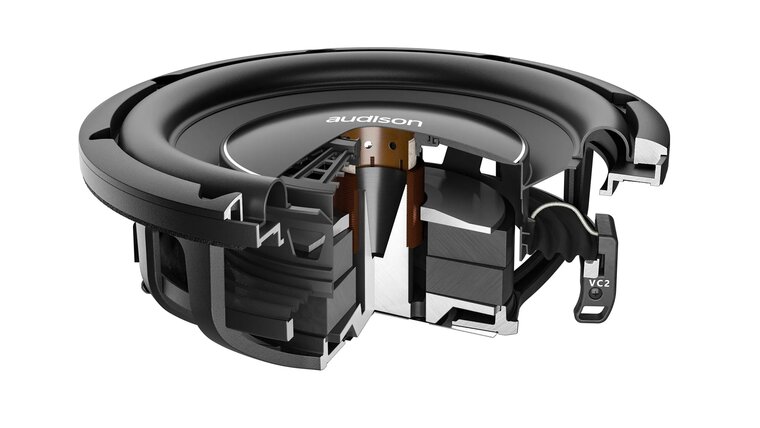

12. FEM-Optimized Magnetic Circuit Geometry
The entire magnetic assembly has been engineered using Audison’s proprietary FEM simulation platform to concentrate the magnetic flux precisely around the voice coil gap, enhancing efficiency, responsiveness, and control.
13. eID Technology
Features Elettromedia’s eID system for full traceability, product authentication, and direct access to technical documentation and support.
