Productomschrijving
Audio System brengt met de DSP4.6BT een compacte en zeer veelzijdige 6 kanaals DSP processor op de markt die voorzien is van de allernieuwste technieken en ook prima overweg kan met voertuigen voorzien van start-stop systemen.

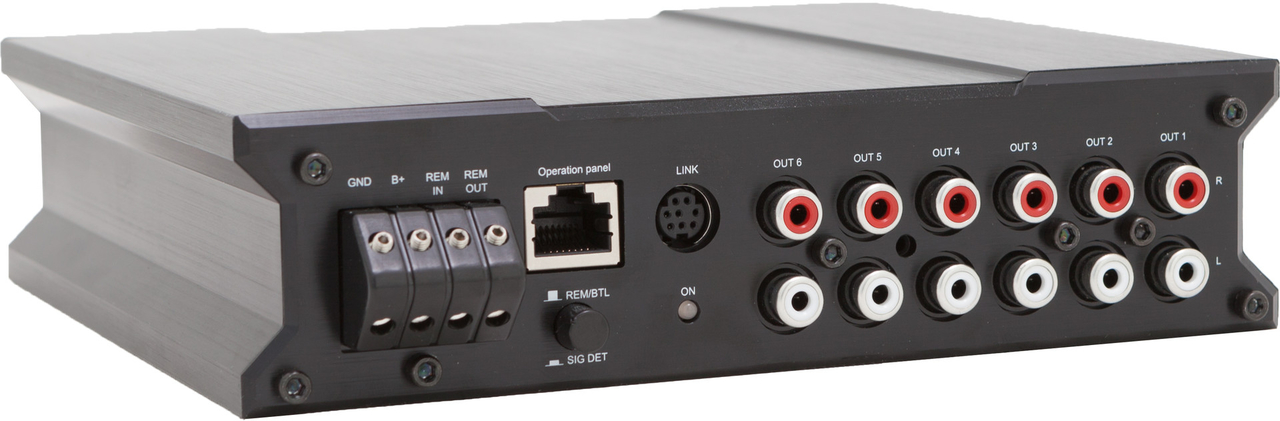

Audio System DSP 4.6BT "Met App Control)
6-chanel Sigma DSP processor van Analog Devices
Automatische updates via WLAN
App Control "Android & IOS" via bluetooth
30 bands parametrische equalzier per kanaal
4 RCA inputs (Low level 2 to 4 Volt) and 4x Molex high-level inputs (5 to 20 Volt) automatic remote.
6 RCA outputs (5 Volt),
1x AUX-input,
1x optical input und 1x optical output,
1x remote- -output, SD-card slot.
Intuitive GUI, Dual-core-chip with 250 MHz processing power. Sampling rate 96 kHz (192 kHz optional).
Frequenzy range: 10 - 44000 Hz,
Signal to noise ratio: digital:108 dB, analog: 102 dB
Crosstalk attenuation higher 92 dB,
start/stopp ability 6 Volt/5sec,
operating voltage 9,6-18 Volt,
operating temperature -20C° to +80C°.
Dimensions:180 x 160 x 45 mm
