Productomschrijving

De PRIMA serie componenten luidspreker systemen van Audison "Italy" zijn opgebouwd uit hoogwaardige tweeters AP1P met daarbij APCX P2T compacte crossovers met 2-position installing voor de tweeters (+2dB voor OEM of 0 dB voor A-Pillar) en zijn perfect als Upgrade voor vervanging van OEM luidspreker systemen.

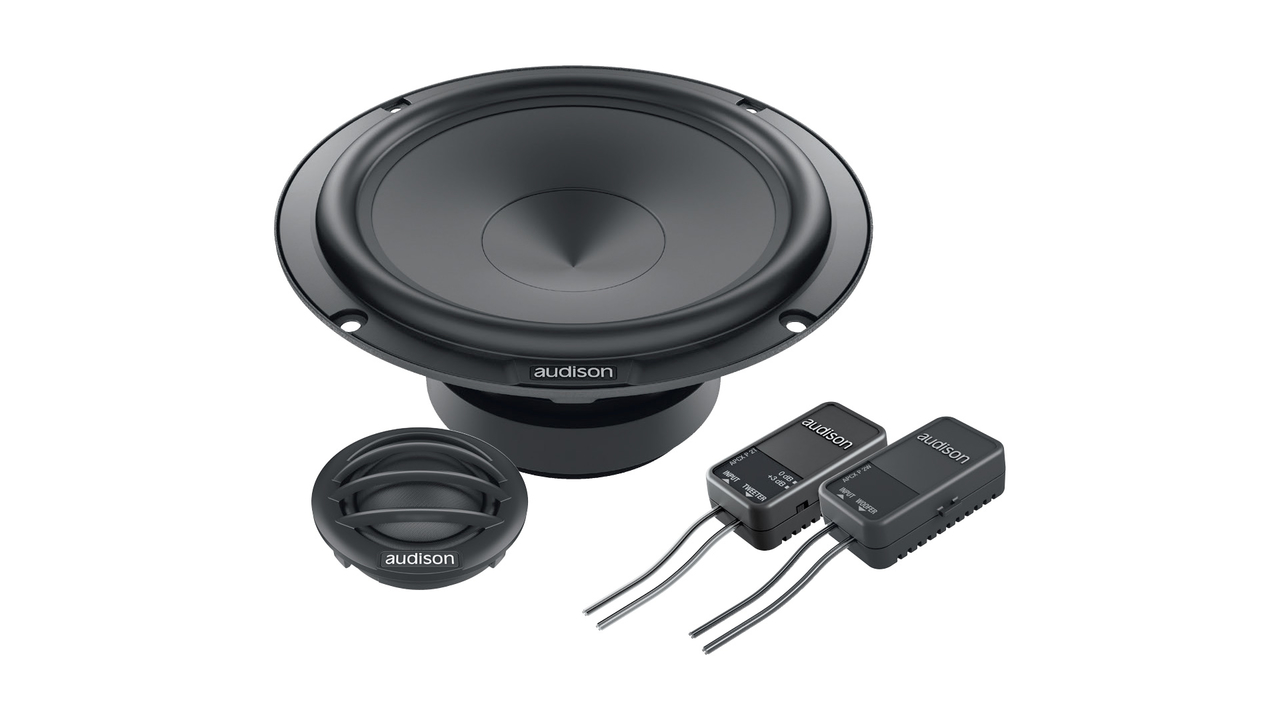

Audison APK165P

16,5 cm 2-weg compo luidspreker set
165 mm midwoofer / 26 mm tweeter
Frequentie bereik: 50 - 24.000 Hz
115 watts RMS / 345 watts MAX
Gevoeligheid: 92,5 dB
Impedantie: 4 ohms
Inbouwopening: 141 mm
Inbouwdiepte: 56 mm

Extra informatie:

AP 1P

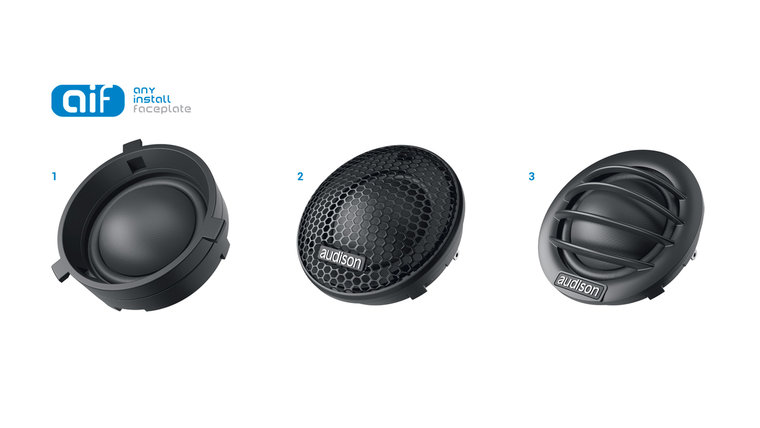

1. AIF technology (Any Install Faceplate) for total application versatility and a significant reduction in installation time

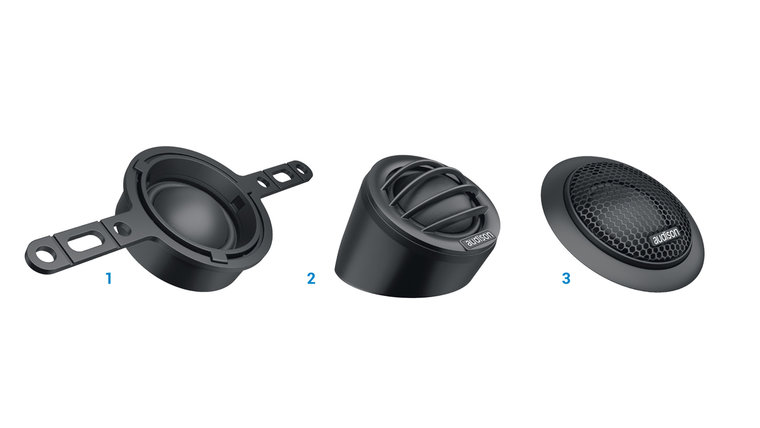

2. Three mounting accessories supplied to provide a solution for any type of installation
3. Magnetic group with double Neodymium tablet for an excellent high frequency extension
4. 1” CCAW voice coil for superior dynamic response
5. Dome profile optimized with FEM simulations for a wide off-axis dispersion

AP 6.5P
1. Increased excursion of the mobile group for a superior dynamic response
2. Optimized electro-acoustic parameters to maximize performance for OEM placements
3. Magnetic group sized for perfect control even at maximum cone excursion
4. CCAW (Copper-Clad Aluminium Wire) voice coil (32 x 14 mm) to optimally manage the greater applied power
5. Compact size basket for easy OEM installations

APCX P 2T, APCX P 2W
1. Separate ultra-compact crossovers for tweeters and woofers to minimize space requirements and simplify cable routing, facilitating the specialist work
2. Use of components selected and sized for the management of high power avoiding saturation
3. Asymmetric slope filtering, 12 dB/oct on the tweeter and 6 dB/oct on the woofer for an optimal balance between the two components
