Productomschrijving
Auto Connect VWPNP02
Plug & play harness voor integratie versterker / dsp systemen
MIB quadlock connector naar ISO
Montage achter de originele radio systemen
Geschikt voor: VW / Audi / Seat / Skoda / Volvo Trucks

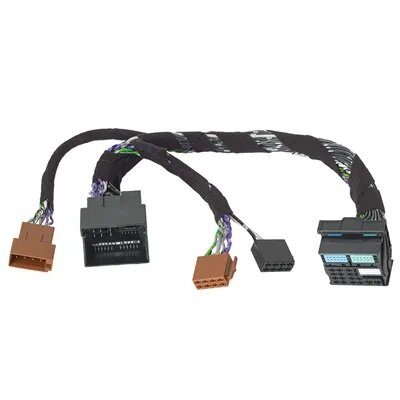

Plug & Play Integration Harness

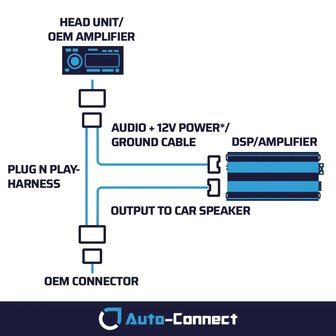

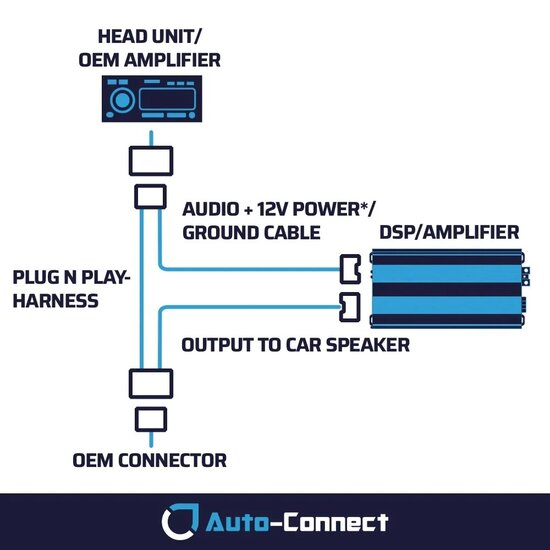

An integration harness, also called SOT-harness, T-harness or Y-harness, is a convenient solution for connecting, for example, a DSP or high-to-low level converter without modifying the car’s original wiring. It acts as an extension of the car's original connector, where speaker and power cables are split into two ISO connectors.
One ISO connector provides a high-level signal and power supply for an audio processor, while the other ISO connector routes speaker cables out to the car and power back to the original system. This enables a smooth installation of audio processors and amplifiers without needing to run new cables or modify the car’s existing system.
Passend voor:
Specifications
1x MIB Quadlock male
1x MIB Quadlock female
1x ISO female, 2x ISO male
Compatible with
Audi
Audi A1 (8X) 2010->2014
Audi A1 (8X) (Facelift) 2015->2018
Audi A1 (GB) 2019->
Audi A3 (8V) 2012->2016
Audi A3 (8V) (Facelift) 2016->2020
Audi A3 (8Y) 2020->
Audi A4 (B8) 2006->2012
Audi A4 (B8) (Facelift) 2012->2015
Audi A4 (B9) 2016->2018
Audi A4 (B9) (Facelift) 2019->
Audi A5 (8T/8F) 2007->2011
Audi A5 (8T/8F) (Facelift) 2011->2013
Audi A5 (8T/8F) (2nd Facelift) 2013->2016
Audi A5 (F5) 2017->2019
Audi A5 (F5) (Facelift) 2019->
Audi A6 (C7) 2011->2015
Audi A6 (C7) (Facelift) 2015->2018
Audi A6 (C8) 2018->
Audi A7 (4K8) 2018->
Audi Q2 (GA) 2016->2020
Audi Q2 (GA) (Facelift) 2021->2023
Audi Q3 (8U) 2011->2014
Audi Q3 (8U) (Facelift) 2015->2018
Audi Q3 (F3) 2018->
Audi Q5 (8R) 2008->2011
Audi Q5 (8R) (Facelift) 2012->2017
Audi Q5 (FY) 2017->2020
Audi Q5 (FY) (Facelift) 2021->
MAN
MAN TGE (I) 2017->
Seat
Seat Alhambra (7N) (Facelift) 2016->2020
Seat Arona (KJ7) 2017->
Seat Ateca (KH7) 2016->2020
Seat Ateca (KH7) (Facelift) 2020->
Seat Ibiza (6F) 2017->2021
Seat Ibiza (6F) (Facelift) 2021->
Seat Leon (5F) 2012->2017
Seat Leon (5F) (Facelift) 2017->2020
Seat Leon (KL1) 2020->
Seat Toledo (KG) 2012->2019
Seat Mii (I) (Infotainment Update) 2017->2021
Skoda
Skoda Kodiaq (I) 2017->2021
Skoda Kodiaq (I) (Facelift) 2021->2023
Skoda Kodiaq (II) 2024->
Skoda Citigo (I) (Facelift) 2017->2020
Skoda Citigo (I) e iV 2019->2020
Skoda Enyaq (I) iV 2020->
Skoda Fabia (NJ) 2014->2018
Skoda Fabia (NJ) (Facelift) 2019->2021
Skoda Fabia (PJ) 2021->
Skoda Kamiq (NW4) 2019->2023
Skoda Kamiq (NW4) (Facelift) 2023->
Skoda Karoq (NU7) 2017->2021
Skoda Karoq (NU7) (Facelift) 2021->
Skoda Octavia (5E) 2013->2017
Skoda Octavia (5E) (Facelift) 2017->2019
Skoda Octavia (NX) 2020->2024
Skoda Octavia (NX) (Facelift) 2024->
Skoda Superb (3V) 2015->2019
Skoda Superb (3V) (Facelift) 2020->2023
Skoda Superb (3Y) 2024->
Skoda Slavia (I) 2022->
Skoda Kushaq (I) 2021->
Renault
Renault Scala (I) 2019->2023
Renault Scala (I) (Facelift) 2023->
Seat
Seat Ateca (I) 2018->2021
Seat Ateca (I) (Facelift) 2021->
Seat Leon (I) 2020->2024
Seat Leon (I) (Facelift) 2024->
Cupra
Cupra Born (I) 2021->
Cupra Formentor (I) 2020->2024
Cupra Formentor (I) (Facelift) 2024->
Cupra Tavascan (I) 2023->
Volkswagen
Volkswagen Amarok (2H) (Facelift) 2016->2022
Volkswagen Amarok (NF) 2022->
Volkswagen Ameo (I) 2016->2020
Volkswagen Arteon (3H7) 2017->2021
Volkswagen Arteon (3H7) (Facelift) 2021->2024
Volkswagen Atlas (I) 2017->2021
Volkswagen Atlas (I) (Facelift) 2021->2023
Volkswagen Atlas (I) (2nd Facelift) 2024->
Volkswagen Beetle (A5) (Facelift) 2016->2019
Volkswagen Bora (IV) 2018->2022
Volkswagen Bora (IV) (Facelift) 2022->
Volkswagen Caddy (2K) (2nd Facelift) 2015->2020
Volkswagen Caddy (SB) 2020->
Volkswagen California (T6) 2015->2019
Volkswagen California (T6.1) 2019->2022
Volkswagen California (T7) 2022->
Volkswagen Caravelle (T6.1) 2019->2024
Volkswagen Crafter (II) 2017->2023
Volkswagen Crafter (II) (Facelift) 2023->
Volkswagen e-Tharu (I) 2018->2023
Volkswagen E-UP! (I) 2013->2019
Volkswagen E-UP! (II) 2019->2023
Volkswagen Gol (5U) (3rd Facelift) 2018->2022
Volkswagen Golf (VII) 2012->2016
Volkswagen Golf (VII) (Facelift) 2017->2020
Volkswagen Golf (VIII) 2020->2024
Volkswagen Golf (VIII) (Facelift) 2024->
Volkswagen Golf Sportsvan (I) 2014->2018
Volkswagen Golf Sportsvan (I) (Facelift) 2018->2020
Volkswagen ID Buzz (I) 2022->
Volkswagen ID3 (E11) 2019->2023
Volkswagen ID3 (E12) 2023->
Volkswagen ID4 (E21) 2020->
Volkswagen ID5 (E39) 2022->
Volkswagen ID7 (I) 2023->
Volkswagen Jetta (A7) 2018->2021
Volkswagen Jetta (A7) (Facelift) 2022->
Volkswagen Lamando (I) 2014->2022
Volkswagen Lamando (II) 2022->
Volkswagen Lavida (III) 2018->2022
Volkswagen Lavida (III) (Facelift) 2022->
Volkswagen Magotan (B8L) 2015->2019
Volkswagen Magotan (B8L) (Facelift) 2020->2023
Volkswagen Magotan (B9) 2024->
Volkswagen Multivan (T6.1) 2019->2022
Volkswagen Multivan (T7) 2022->
Volkswagen Nivus (CS1) 2020->
Volkswagen Passat (B8) 2014->2019
Volkswagen Passat (B8) (Facelift) 2020->2023
Volkswagen Passat (B9) 2023->
Volkswagen Polo (Mk5) (Facelift) 2014->2017
Volkswagen Polo (Mk6) 2017->2021
Volkswagen Polo (Mk6) (Facelift) 2021->
Volkswagen Polo Vivo (I) 2018->
Volkswagen Sagitar (A7) 2019->2021
Volkswagen Sagitar (A7) (Facelift) 2022->
Volkswagen Saveiro (5U) (3rd Facelift) 2018->2022
Volkswagen Scirocco (III) (Facelift) 2014->2017
Volkswagen Sharan (7N) (Facelift) 2016->2022
Volkswagen T-Cross (C11) 2019->2023
Volkswagen T-Cross (C11) (Facelift) 2023->
Volkswagen T-Roc (I) 2017->2021
Volkswagen T-Roc (I) (Facelift) 2021->
Volkswagen Tacqua (C11) 2019->
Volkswagen Taigo (CS1) 2021->
Volkswagen Talagon (I) 2021->
Volkswagen Taos (I) 2020->2024
Volkswagen Taos (I) (Facelift) 2025->
Volkswagen Tavendor (I) 2022->
Volkswagen Tayron (I) 2018->2023
Volkswagen Tayron (I) (Facelift) 2023->2024
Volkswagen Tayron (II) 2024->
Volkswagen Teramont (I) 2017->2021
Volkswagen Teramont (I) (Facelift) 2021->
Volkswagen Teramont X (I) 2019->2021
Volkswagen Teramont X (I) (Facelift) 2021->
Volkswagen Tharu (I) 2018->2023
Volkswagen Tharu (I) (Facelift) 2023->
Volkswagen Tharu (I) (Facelift) 2023->
Volkswagen Tiguan (I) (Facelift) 2012->2015
Volkswagen Tiguan (II) 2016->2020
Volkswagen Tiguan (II) (Facelift) 2020->2023
Volkswagen Tiguan (III) 2024->
Volkswagen Tiguan Allspace (I) 2017->2021
Volkswagen Tiguan Allspace (I) (Facelift) 2021->
Volkswagen Touareg (7P) 2010->2015
Volkswagen Touareg (7P) (Facelift) 2015->2018
Volkswagen Touareg (CR) 2018->2023
Volkswagen Touareg (CR) (Facelift) 2023->
Volkswagen Touran (5T) 2015->
Volkswagen Transporter (T6) 2015->2019
Volkswagen Transporter (T6.1) 2019->2024
Volkswagen UP! (I) (Facelift) 2016->2023
Volkswagen Vento (A7) 2018->2021
Volkswagen Vento (A7) (Facelift) 2022->
Volkswagen Vento (A05) (Facelift) 2014->2019
Volkswagen Vento (A05) (2nd Facelift) 2019->2022
Volkswagen Viloran (I) 2020->
Volkswagen Virtus (I) 2018->
Volkswagen Voyage (5U) (3rd Facelift) 2018->2022
Scania
Scania S-Series (I) 2016->2023
Scania R-Series (II) 2016->2023
Scania G-Series (II) 2016->2023
Scania P-Series (II) 2016->2023
Scania L-Series (I) 2017->2023
Scania XT-Range (I) 2017->2023
Volvo Trucks
Volvo FH Trucks (III) (Facelift) 2020->
Volvo FM Trucks (III) 2020->
Volvo FMX Trucks (II) 2020->
Note: Some car models may have a different connector. Double check to make sure this connector is the same as in your car. This harness is not suitable for cars with OEM amplifiers.
