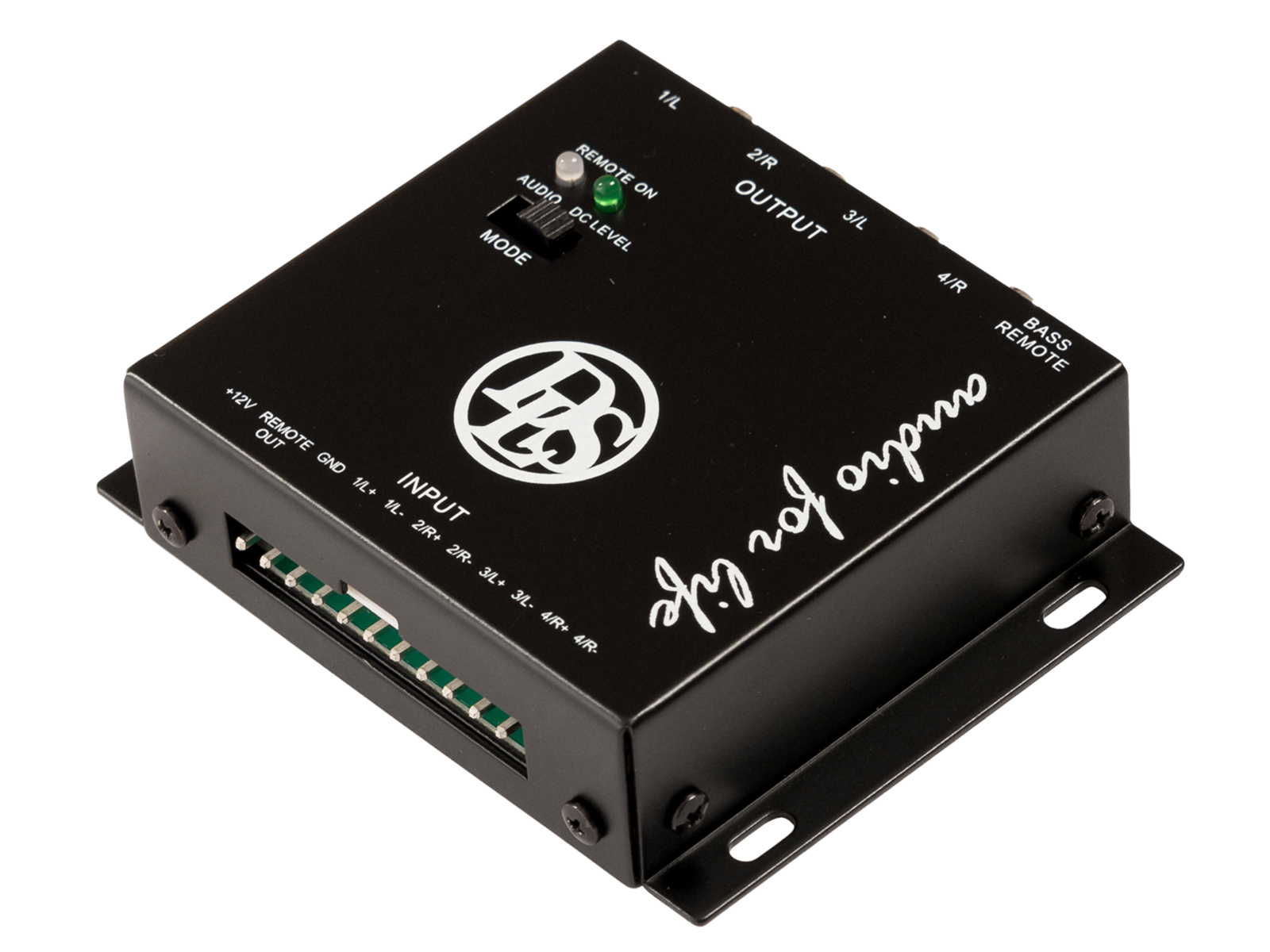

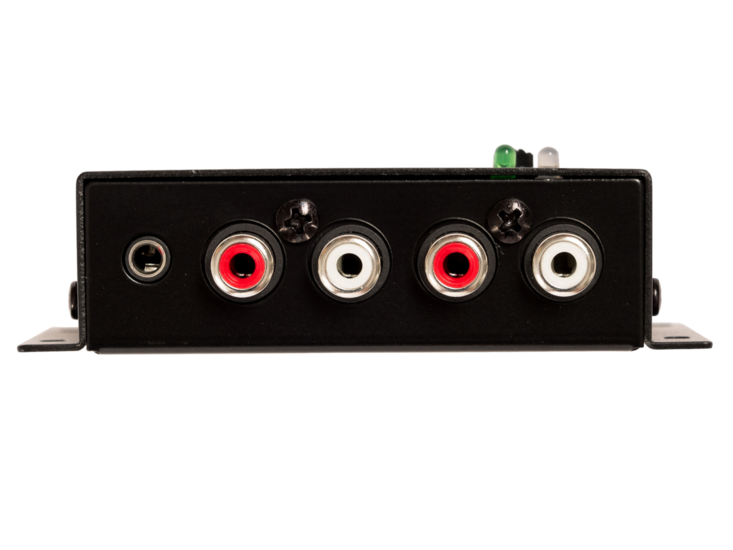

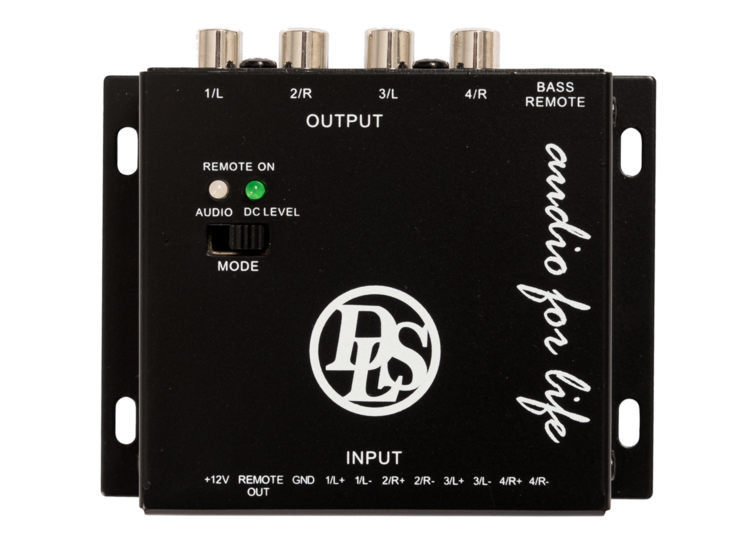

DLS CA-HLC4.2 high level line output converter 4 kanaals

DLS CA-HLC4.2 DLS CA-HLC4.2 high level line output converter 4 kanaals DLS CA-HLC4.2 high level line output converter 4 kanaals
DLS CA-HLC4.2 DLS CA-HLC4.2 high level line output converter 4 kanaals DLS CA-HLC4.2 high level line output converter 4 kanaals
DLS CA-HLC4.2 high level line output converter 4 kanaals
0 Review | Review toevoegen
DLS CA-HLC4.2 high level line output converter 4 kanaals

Gewicht

0,000 KG

Verzendkosten

€ 0,00

Standaard levertijd

1 - 2 Dagen

EAN

7331644030119

€ 99,00
Prijs per stuk
Het aantal Spaarpunten dat je voor dit product ontvangt is 2
Aantal:
Bestellen

Bekijk
DLS CA-HLC4.2

Number of channels: 4
Power supply: 12 V DC (min 10,8, max 15,6V)
Current draw, no signal: 4 mA
Current draw, operational: Typical 25 mA
Output voltage: 3 V RMS
Distortion: 0,002% THD @ 3V output, 10 kohm load
Clip point: 3,7 V RMS @ 14,4 V power supply
Output impedance: 200 ohms nominal
Input impedance: Ch. 1: 44 ohms, Ch. 2-4: 100 ohms, All channels are fully balanced
Sensing modes: DC level or Audio, both operate on Ch. 1 only.
Remote output: 12 Volts, max 100 ma max, protected against short term short circuit
Indicators: Green= Remote on, Blue = Audio sensing active
Reverse polarity protected.Summing output ch 3 + 4 for subwoofer amp when used with optional EBC
