Productomschrijving
De Reference serie van DLS staat bekend om zijn zeer goede klank kwaliteit en is nu compacter dan ooit om zo ook inbouw eenvoudiger te maken. High level input met auto turn on functie laten deze versterker perfect werken met de nieuwste auto´s ook wanneer er geen RCA uitgangen op de radio aanwezig zijn.

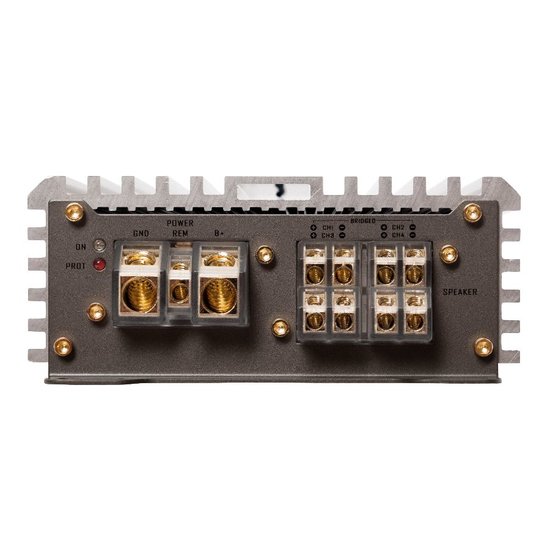

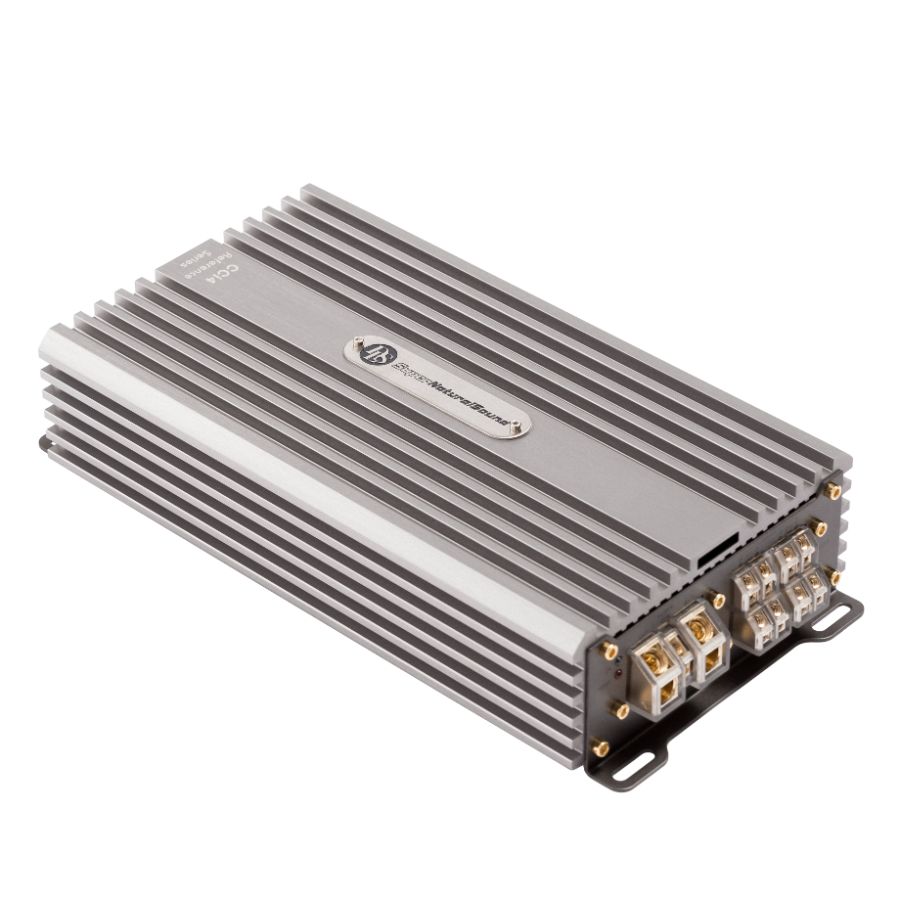

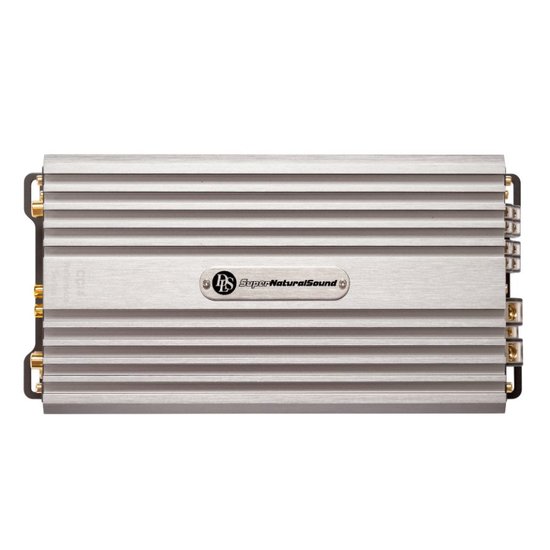

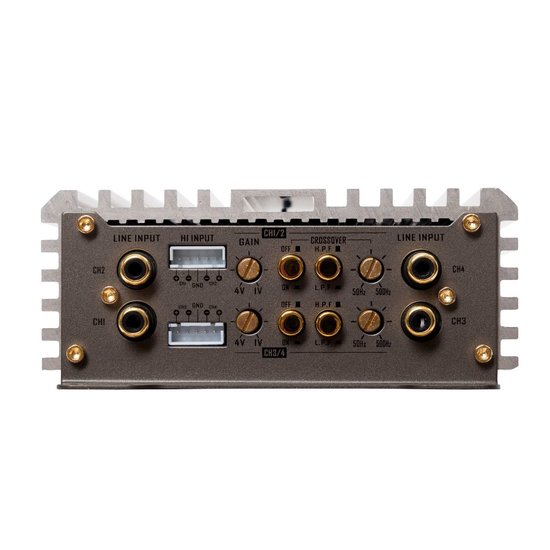

DLS Reference CCi4
Klasse A/B 4 kanaals versterker
4 x 50 watts RMS 4 ohms
4 x 70 watts RMS 2 ohms
2 x 140 watts RMS 4 ohms mono gebrugt
Frequentie bereik: 10 - 55.000 Hz
Auto high level inputs (adapters meegeleverd)
Ingebouwde ventilator
Highpass filtering: 50 - 500 Hz
Lowpass filtering: 50 - 500 Hz
Externe zekering: 40A
Afm: 320 x 54 x 129 mm
Extra informatie:
Designed and sound tuned by Gordon Taylor in cooperation with DLS Sweden, the CCi series amplifiers all share the unique intelligent cooling of the small footprint casing.
The clever tooling of the heatsink gives more heat dissipation fins on the outside and on the inside there is a vast area of small fins that collect the heat from the air venting through the PC board, releasing it through thin slots in the side panels.
The CCi series produce more power and less heat – you can hear it and you can feel it!
The appraised DLS audiophile sound is secured by linear regulators supplying the preamp and a high bias drive circuitry. Combined with top quality output devices it simply makes DLS amplifiers sonically superior to competitors. Glimmering details with warm midrange and a class leading S/N ratio of over 110 dBA — the amp is dead quiet!
For perfect system integration the CCi series includes the proven DLS High level converter with Auto start for serious upgrading of OEM radios and wide range input level handling.
