Productomschrijving
De Reference serie van DLS staat bekend om zijn zeer goede klank kwaliteit en is nu compacter dan ooit om zo ook inbouw eenvoudiger te maken. High level input met auto turn on functie laten deze versterker perfect werken met de nieuwste auto´s ook wanneer er geen RCA uitgangen op de radio aanwezig zijn.

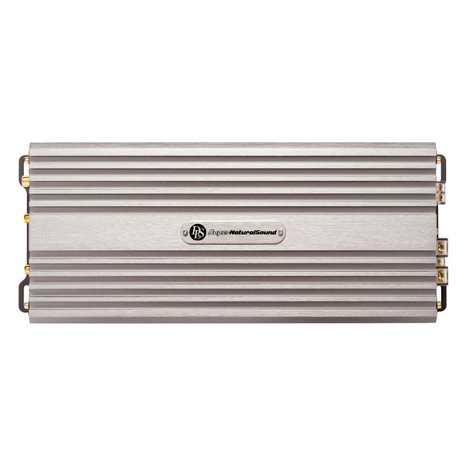

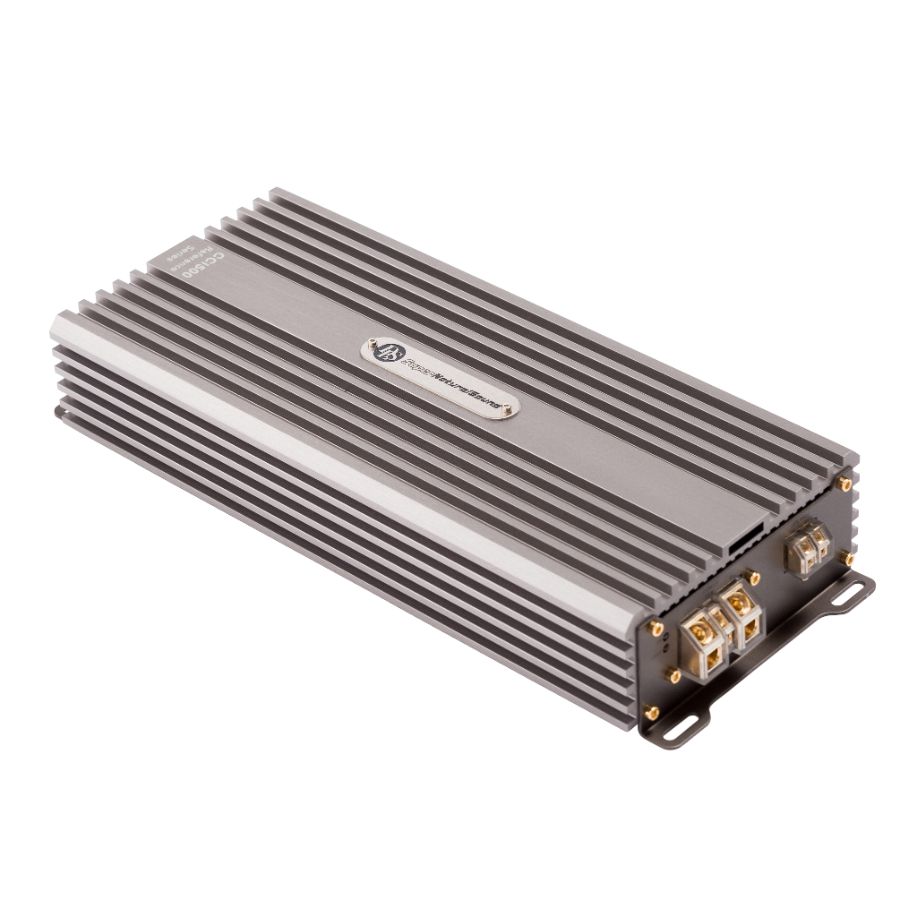

DLS Reference CCi500
Monoblock klasse D versterker
200 watts RMS 4 ohms
370 watts RMS 2 ohms
550 watts RMS 1 ohms

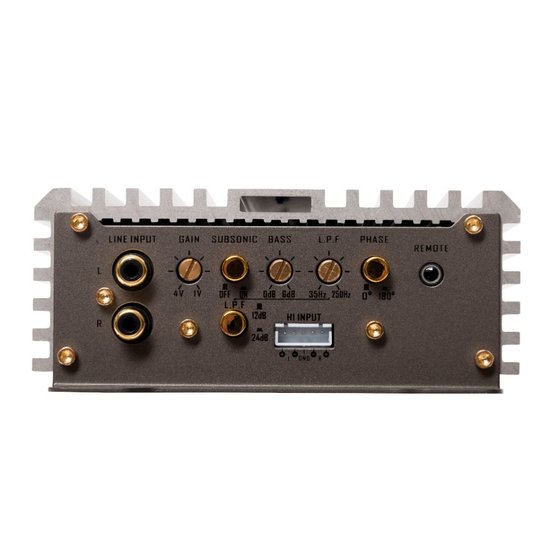

LPF filtering: 35 - 250 Hz 12/24dB
Subsonic filtering: 30 Hz aan/uit
Sub Phase: 0 - 180 Graden
Bass boost: 0 - 6 dB bij 45 Hz

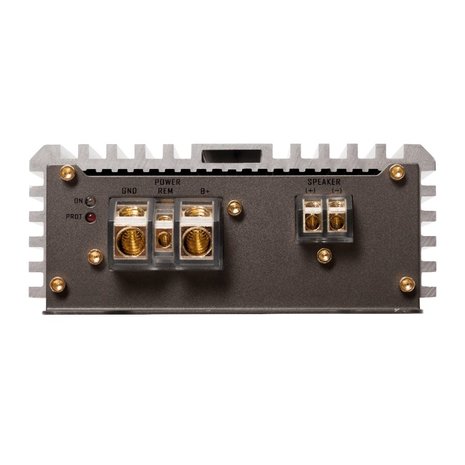

RCA & auto high level ingangen
Inclusief bass-remote controller
Afm: 304 x 51 x 129 mm
Extra informatie:
Designed and sound tuned by Gordon Taylor in cooperation with DLS Sweden, the CCi series amplifiers all share the unique intelligent cooling of the small footprint casing.
The clever tooling of the heatsink gives more heat dissipation fins on the outside and on the inside there is a vast area of small fins that collect the heat from the air venting through the PC board, releasing it through thin slots in the side panels.
The CCi series produce more power and less heat – you can hear it and you can feel it!
The advanced class D circuitry in CCi500 brings out massive, clean power to keep perfect control of the cone in any subwoofer. For perfect system integration the CCi series includes the proven DLS High level converter with Auto start for serious upgrading of OEM radios and wide range input level handling.
