Productomschrijving

De SS-serie versterkers zijn de nieuwste aanwinsten binnen het assortiment van Digital Desigs USA en vallen op door hun zeer compacte afmetingen. Dankzij high speed klasse D designs leveren ze veel vermogen en een goede sound.

Digitals Designs SS6000

Klasse D fullrange mono block versterker
Frequentie bereik: 10 - 20.000 Hz
2000 watts RMS 4 ohms
4000 watts RMS 2 ohms
6000 watts RMS 1 ohms
Lowpass filter: 80 - 20.000 Hz
Subsonic filter: 20 - 80 Hz
Bass boost: 0 - 12 dB
RCA & auto high level ingangen

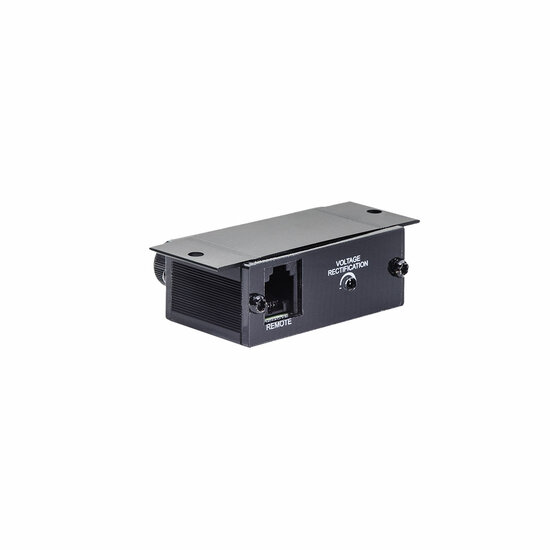

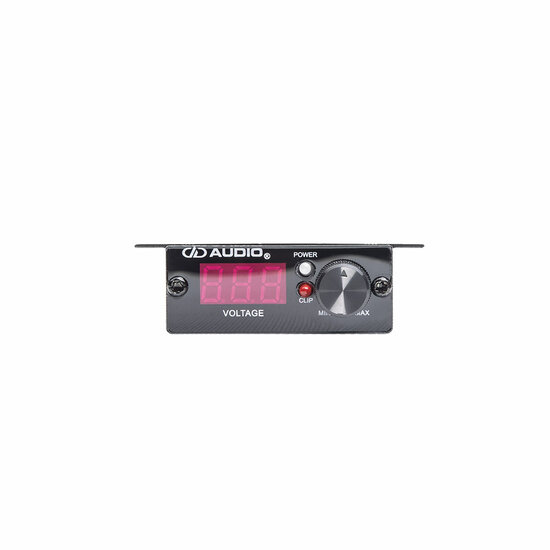

Inlcusief bass-remote controller
Afm: 286 x 60 x 185 mm

The SS6000 monoblock uses an exclusive DD designed circuit combining full bridge architecture with high current devices typically reserved for half bridge amps. This hybrid approach provides full range performance and speed with big, clean power output, all packed into a highly efficient, compact chassis. Pro audio systems, like stunt walls loaded with mid-woofers and high-frequency drivers, will benefit greatly from the low noise floor. Big bass systems will binge on 6000 watts produced by the QUAD toroidal power supply and over-sized capacitors to hammer out one barrage of low-frequency passages after another.

The SS amplifiers have earned a reputation as high speed, high current, class D designs offering big power and superior sound quality in compact footprints. As with all DD amps, every major component is name-brand. They use higher current mosfets and output devices, increased power capacitors, and four extremely efficient transformers, all on a thermally robust PCB. The housing includes multiple discrete vents and DD AUDIO’s classic heat sink which includes 50% more side wall thickness than industry norms and extra long fins to increase surface area for maximum cooling.

These new high-end compact amps are state of the art, no compromise designs yielding the best sound with unparalleled power to size ratio. The transformation is physically tangible and audibly undeniable.
