Productomschrijving

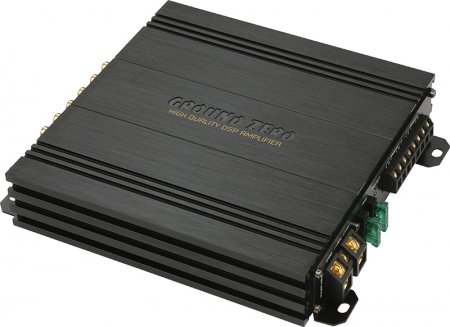

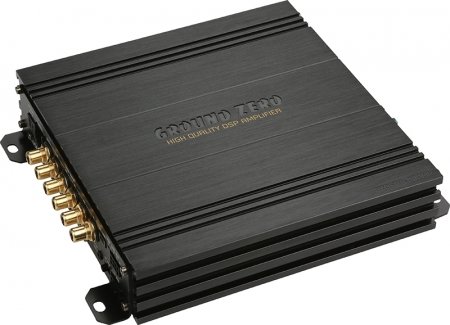

De GZDSP4.80 van Ground Zero is een compacte 4 kanaals versterker met ingebouwde DSP. Vermogen 4 x 80 watts RMS 4 ohms stereo voor de luidsprekers en via DSP natuurlijk optimale afstemming van frequentie, q-factor en andere filters.
Ground Zero GZDSP4.80 AMP
4 kanaals DSP versterker klasse D
8 kanaals DSP processor 32bit-192 kHz
4 x 80 watts RMS 4 ohms
4 x 130 watts RMS 2 ohms
2 x 260 watts RMS 4 ohms gebrugt
6 kanaals high level input
6 kanaals RCA low level input
PC Link / BT / USB / AUX
Optische ingang
Optionele bass-remote aansluiting
Afgezekerd: 2 x 30A
Afm: 185 x 42 x 215 mm
Extra informatie:
4-channel amplifier with integrated 8-channel signal processor (DSP)
High efficient 2 Ohm stable class D amplifier
6-channel line input (RCA)
6-channel high-level input (with auto-on function)
AUX input (3.5 mm socket)
TOSLINK input (sampling rate up to 24-bit/96kHz)
Plug for optional interface (wireless music streaming)
4-channel line output (RCA)
8-channel signal processor (DSP) - Cirrus Logic single core 32-bit/192 kHz
Realtime setup of all functions (via PC)
Simple handling, one-page graphical user interface (Windows compatible)
Channel separated parametric equalizer (6x 31 band / 2x 11band)
Channel separated time alignment (0-15 ms / 0-510 cm)
Adjustable crossover (HPF / LPF / BPF) in the range of 20 Hz to 20 kHz
Selectable crossover slope (6 to 48 dB/Oct)
Selectable phase shift for on channel (0˚ or 180°)
Memory for 10 user presets (selectable with optional remote control)
Two optional remote-control units available (GZDSP Remote or GZDSP Touch-Remote), to adjust main and subwoofer level, select the presets and input mode
LED power and status indicator (protection circuit)
Power on delay
High temperature / short circuit / overload protection circuit)
