Productomschrijving

De kleine Digitale broertjes van de Analoge versterkers uit de Hydrogen serie van Ground Zero Germany. De GZHA mini versterkers zijn voorzien van high level ingangen en uitgebreide filters en natuurlijk hoogstaande sound.

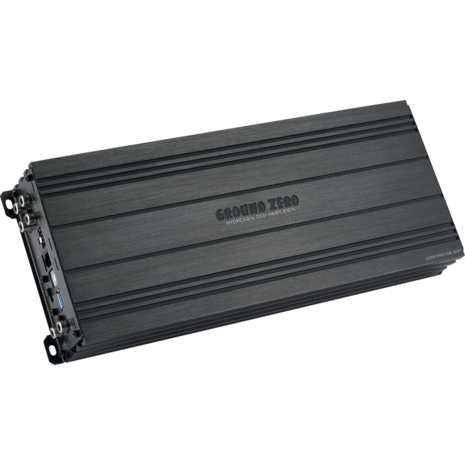

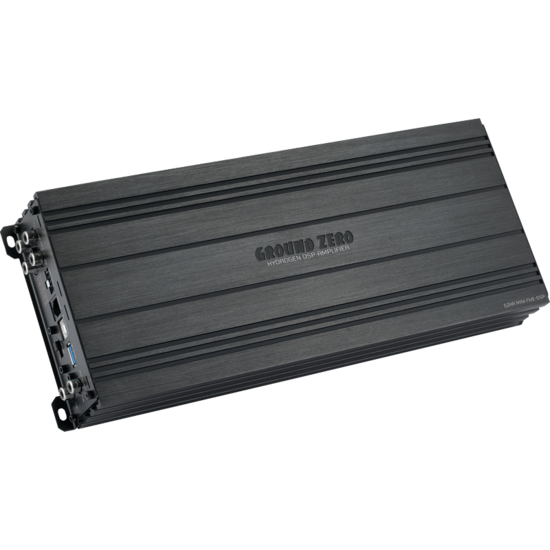

Ground Zero Hydrogen GZHA Mini Five DSP

Klasse D 5 kanaals versterker met ingebouwde DSP
7 kanaals DSP ingebouwd voor fine-tuning sound
Frequentie bereik: 20 - 20.000 Hz
4 x 75 watts RMS 4 ohms
4 x 125 watts RMS 2 ohms
2 x 250 watts RMS mono gebrugt 4 ohms
Subkanaal 5
190 / 320 / 500 watts RMS 4 / 2 / 1 ohms
Lowpass filter: via DSP
Subsonic filter: via DSP
Bass boost: via DSP
Phase Shift: via DSP
RCA en auto high level ingangen
Afm: 135 x 52 x 322 mm

Extra informatie:
• High-efficient 5-channel class D amplifier with built-in 8-channel DSP
• 2 ohms stable (channels 1-4)
• 1 ohm stable (subwoofer channel)

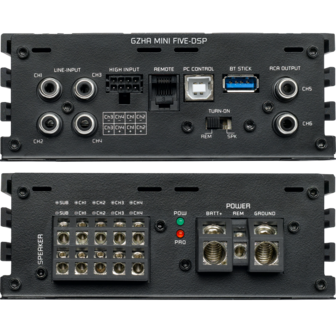

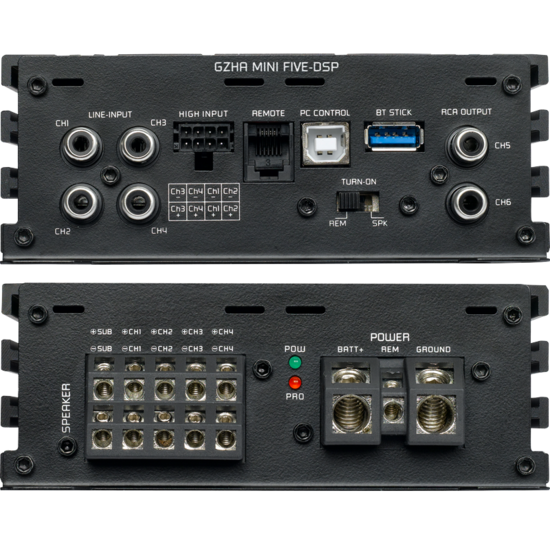

• 2x stereo RCA input / 1x stereo RCA output / 4-channel high-level input
• Auto-on function (available for speaker input only)
• Thermal protection / short circuit protection / overload protection
• Digital signal processor (DSP) / 2x Analog Devices SigmaDSP
• Realtime setup of all functions (via PC or APP*)
• Simple handling, one-page graphical user interface (Windows® compatible)
• Parametric equalizer for each channel (8x 10 bands)
• Time alignment (0-8 ms / 0-272 cm / 0-107”) for each channel
• Adjustable crossover (HPF / LPF / BPF from 20 Hz to 20 kHz)
• Selectable crossover slope (6 to 24 dB/oct)
• 3 filter characteristics (Butterworth/Bessel/Linkwitz-Riley)
• Selectable phase shift for each channel (0˚ or 180°)
• Memory for 6 user presets (selectable via remote control, PC or APP*)
• Wired multifunction remote control GZDSP REM 4-8XII-S available separately
• Wireless music streaming via GZDSP BTS 4-8XII-S available separately
