Productomschrijving

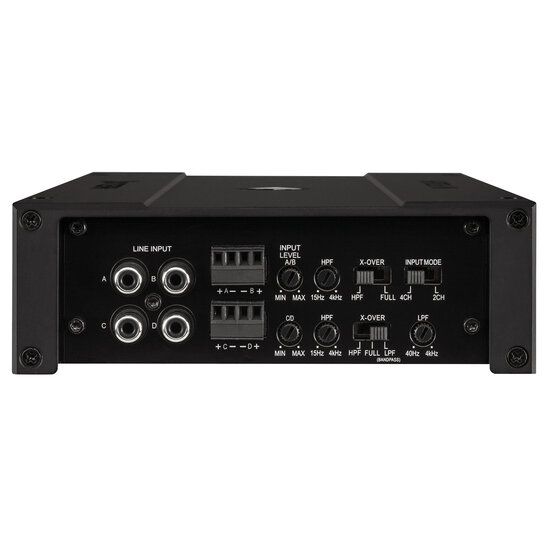

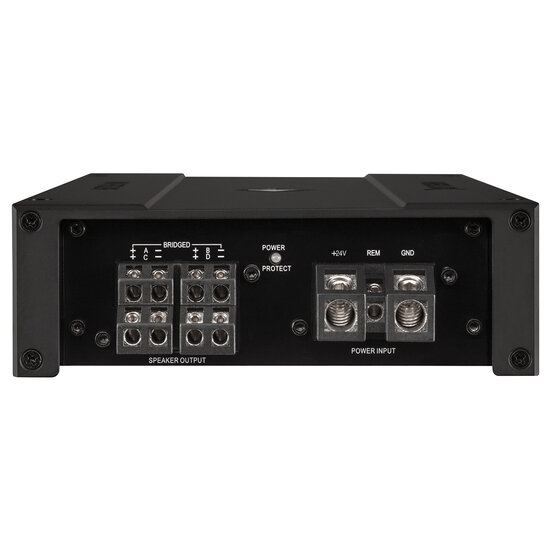

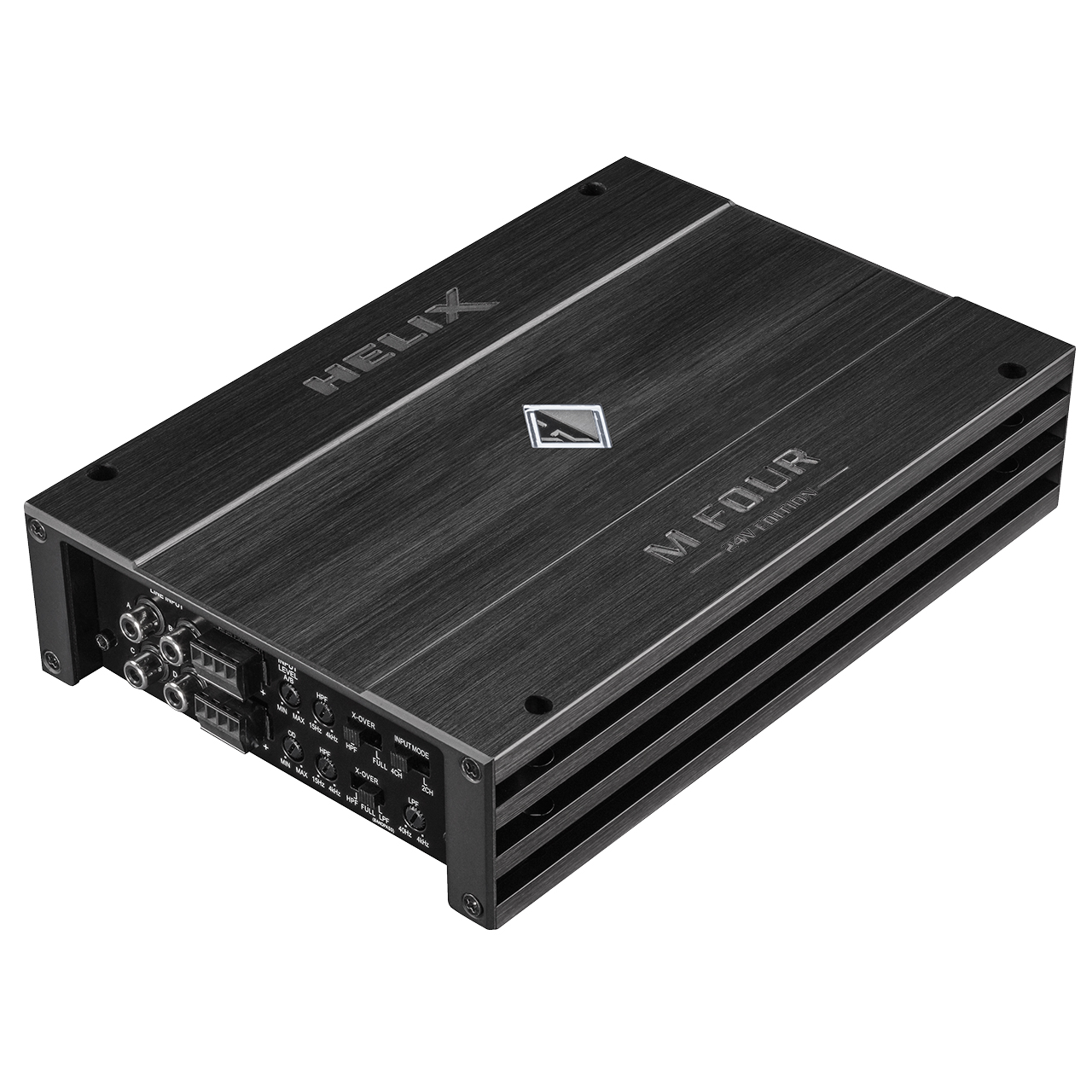

HELIX M-FOUR-24V

4 kanaals 24 volts klasse D versterker
18 - 36 volts (max 5 sec down to 12V)
Frequentie bereik: 10 - 30.000 Hz
4 x 100 watts RMS 4 / 2 ohms stereo
2 x 200 watts RMS 4 ohms mono gebrugt
Lowpass filtering: 40 - 4000 Hz / 12 dB
Highpass filtering: 15 - 4000 Hz / 12 dB
RCA & auto high level ingangen
Afm: 230 x 50 x 154 mm

Extra informatie:
Small footprint Class D amplifier with high output power of 100 Watts RMS bij 4 and 2 Ohms load

Start-Stop capability down to 12V supply voltage

Smart highlevel input with ADEP circuit (Advanced Diagnostics Error Protection) and Auto Turn-On function

Integrated, active crossover with highpass, lowpass and bandpass

“Input mode” switch for flexible input signal routing

SMD (Surface Mounted Device) manufacturing technology combines minimum space requirement with maximum reliability

Exclusive, extremely compact and clean design with illuminated HELIX-logo and low heat dissipation thanks to extraordinary efficiency
