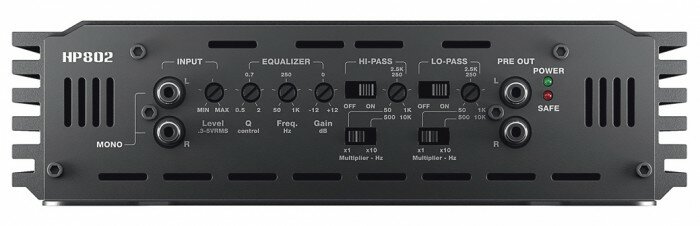

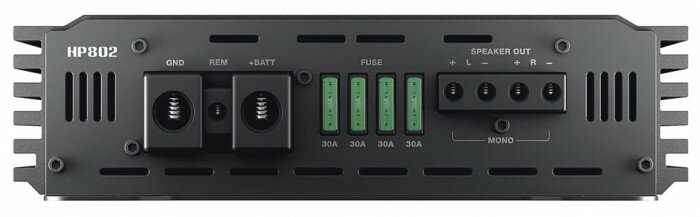

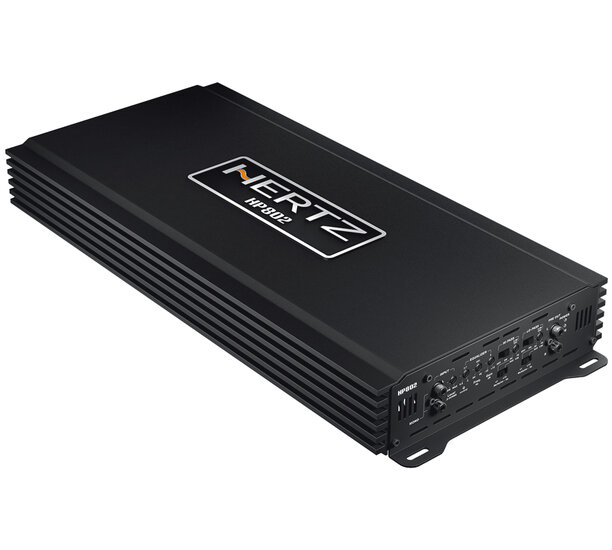

Hertz HP802 SPL SHOW 2 kanaals versterker 1600 watts RMS

De Hertz HP802 uit de SPL SHOW series is een ouderwetse klasse AB stereo versterker met zeer veel stabiel vermogen, tot aan 2 x 800 watts RMS 1 ohms stabiel.

HERTZ SPL SHOW HP802

2 kanaals klasse AB high power versterker
Frequentie bereik: 10 - 55.000 Hertz
2 x 330 watts RMS 4 ohms (380 watts RMS 10%)
2 x 550 watts RMS 2 ohms (630 watts RMS 10%)
2 x 800 watts RMS 1 ohms (900 watts RMS 10%)
1 x 1100 watts RMS 4 ohms mono gebrugt
1 x 1600 watts RMS 2 ohms mono gebrugt
High - Low & bandpass filtering
50 - 1000 Hz / 500 - 10.000 Hz
Afm: 544 x 66 x 240 mm

Extra informatie:

1. In order to deliver such extraordinarily high power, the power supply stage features 4 toroidal transformers, 8 - 2200 uF 105° Low ESR primary capacitors for a total of 17600Uf, 120A TO247 Mosfets and 4 - 3300uF secondary capacitors capable of 80V.
2. The AB-Class output stage provides stability into 1 Ω stereo or 2 Ω mono loads and features 20 - 10A/200V impulsive BJT: robust power and thermal dissipation without compromise.
3. By-passable Hi-Pass and Lo-Pass fi lter, separately activated or in combination to create a Band-Pass for each speaker.
4. Parametric equalizer with Q, Frequency and Gain control, to optimize each speaker’s response.
5. Full range Pre output to re-launch the signal to other amplifi ers in a multiamplifi ed system
