Productomschrijving
De RD-serie zijn compacte en fraai gestylde klasse D versterkers met clean power technologie waarbij de focus ligt op stabiel en zuiver vermogen met weinig vervorming dit mede dankzij NexD high speed switching technologie waardoor deze versterkers super efficiënt zijn. Verder fraai weg te bouwen want de filters zitten boven onder een afneembaar paneel.

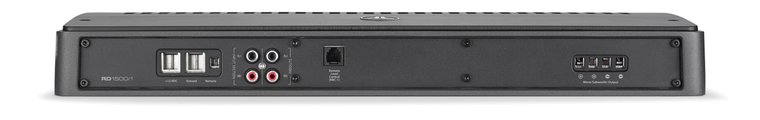

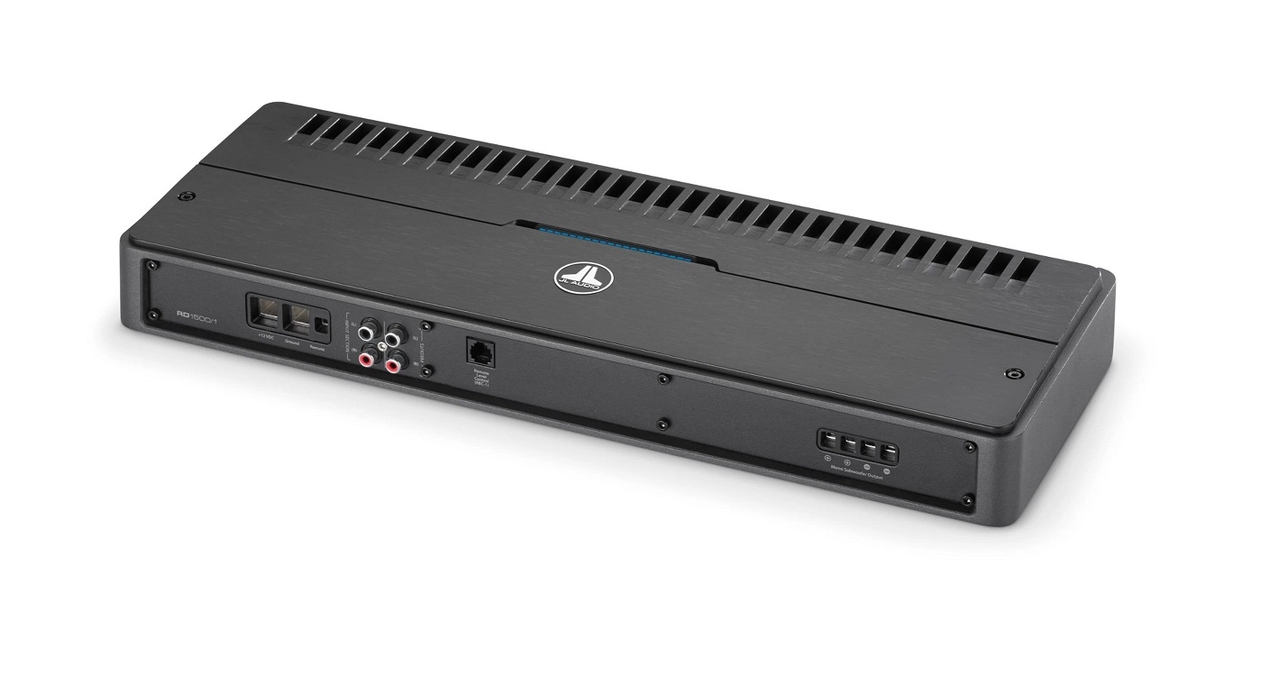

JL AUDIO RD1500/1
Klasse D high end mono block versterker
Frequentie bereik: 7 - 500 Hz
750 watts RMS 4 ohms
1000 watts RMS 3 ohms
1500 watts RMS 2 ohms
1500 watts RMS 1 ohms
Lowpass filters: 50 - 500 Hz / 12 dB
Optioneel RBC-1 bass-remote controller
Afm: 458 x 54 x 177 mm
Extra informatie:
Engineered for high-power, subwoofer applications, the RD1500/1 monoblock amplifier is built to deliver staggering amounts of world-class bass output. Equipped with a special low impedance circuit, the RD1500/1 is capable of generating a whopping 1500 watts of output power, at either 1 or 2 ohms (14.4V, 1% THD). At the heart of this ultra-sleek and compact power plant is JL Audio’s exclusive NexD™ Class D technology, permitting high power output with exceptional efficiency and low distortion.
For your convenience, all of the RD1500/1’s controls are located on top of the amplifier, beneath a protective cover, with all connections found along one side of its chassis. Signal processing features include a 12 dB / octave low-pass filter, with continuously variable frequency selection from 50-500 Hz, and a variable bass boost EQ. Dual-range, differential-balance inputs are also onboard, capable of accepting most input voltage levels. Automatic turn-on capability (via signal sensing or DC-offset sensing) is standard, along with a set of preamp outputs so you can easily pass signals to another amplifier.
The RD1500/1 is also equipped with an onboard LED-clipping indicator. This all-new, innovative feature lets you easily set your amplifier’s input sensitivity setting, quickly and accurately, with no special equipment needed. The RD1500/1 features a durable, black powder-coated finish and a top-mounted, dual-color LED light strip that reports the overall status and condition. Control of the subwoofer level from the driver’s seat is easily accomplished with the addition of the optional RBC-1 remote level control (sold separately).
