Productomschrijving
De XDM-serie versterkers van JL Audio kenmerken zich door het strakke zwarte design en de fraai weggewerkte filters onder het afneembare aluminium paneel bovenop de versterker. Zeer stabiele vermogens en ongekende JL sound en geschikt voor normaal of marine gebruik.
JL AUDIO XDM500/3
3 kanaals klasse D "Marine" versterker
Frequentie bereik: 12 - 22.000 Hz / 10 - 1000 Hz
2 x 75 / 100 watts RMS 4/2 ohms stereo
1 x 180 / 240 / 300 watts RMS 4/3/2 ohms
Highpass filtering: 50 - 500 Hz (CH1-2)
Lowpass filtering: 50 - 500 Hz (CH3) 12dB / 24dB
Optioneel bass-remote controller (HD-RLC of MHD-RLC)
RCA uitgang voor extra versterker aansluiten
Afm: 216 x 52 x 180 mm
Extra informatie:
Small enough to fit in just about any tight space application, the XDM500/3 is the perfect amplifier for a simple audiophile-grade, subwoofer / satellite system. With its three channels of versatile output, you can drive a pair of quality component speaker systems with plenty of clean power, while also delivering a stout 300 W to your subwoofer system. The technology that makes this much power possible in such a small chassis is our advanced NexD™ switching amplifier design.
Suitable for car or boat installations, the XDM500/3 is built with marine-grade materials and features an exclusive, dual-mode input filter for noise-free performance in boats or cars. Automatic turn-on capability (via signal sensing or DC-offset sensing) is also onboard for easy factory system upgrades.
The XDM500/3 includes a 12 dB / octave high-pass filter for its main channels, plus a variable slope low-pass filter for its subwoofer channel. Both filters offer continuously variable cutoff frequency selection from 50-500 Hz. With the addition of an optional HD-RLC or MHD-RLC (water-resistant) remote level controller (each sold separately), you have the ability to adjust the level of all amplifier channels or just the subwoofer channel directly from the driver's seat or helm.

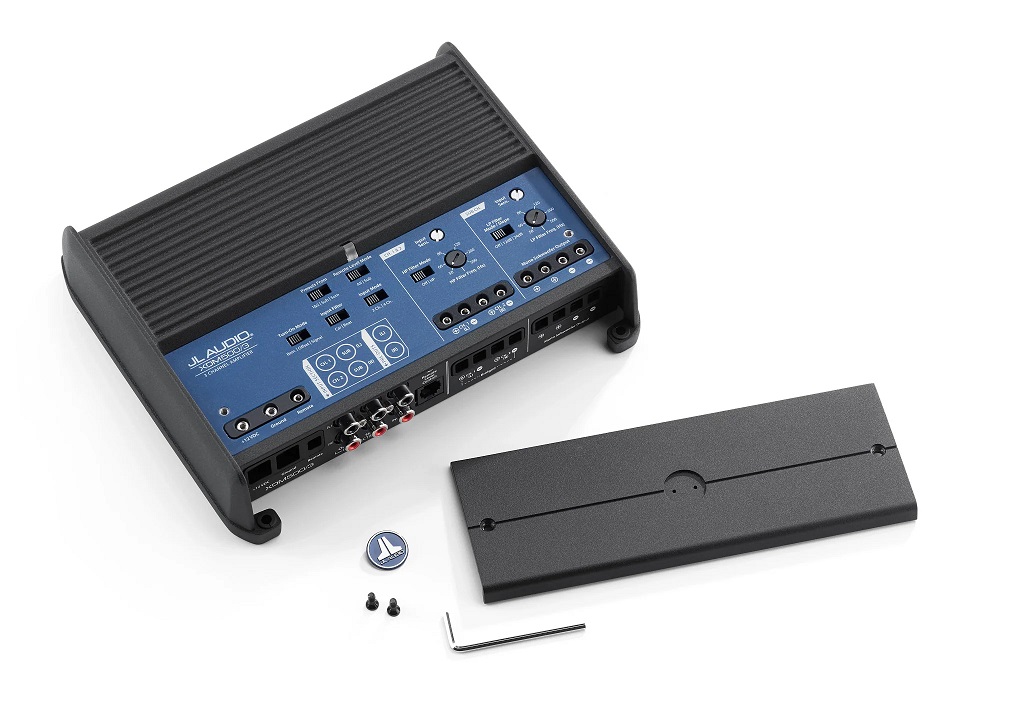

Finished in a sleek, black powder-coat, all controls are protected beneath a gasketed, removable top cover for easy access.
Productspecificatie
