Productomschrijving
De XDM-serie versterkers van JL Audio kenmerken zich door het strakke zwarte design en de fraai weggewerkte filters onder het afneembare aluminium paneel bovenop de versterker. Zeer stabiele vermogens en ongekende JL sound en geschikt voor normaal of marine gebruik.

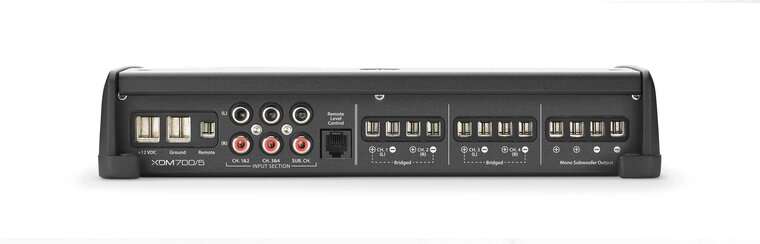

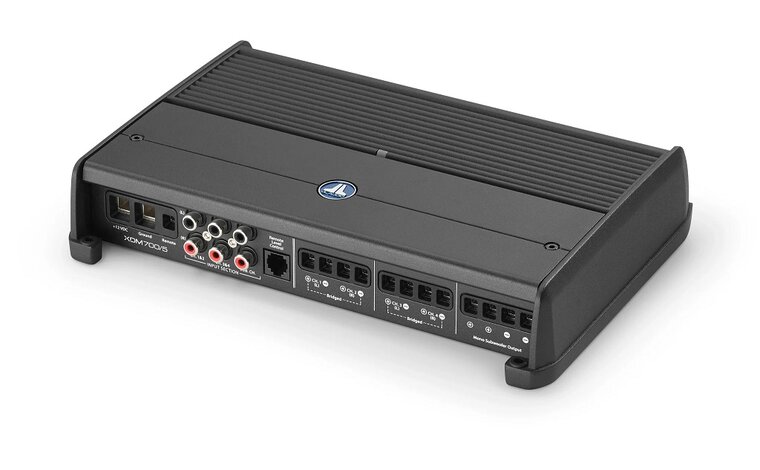

JL AUDIO XDM700/5
5 kanaals klasse D "Marine" versterker
Frequentie bereik: 12 - 22.000 Hz / 10 - 1000 Hz
4 x 75 / 100 watts RMS 4/2 ohms stereo
2 x 200 watts RMS 4 ohms mono gebrugt
1 x 180 / 240 / 300 watts RMS 4/3/2 ohms
Highpass filtering: 50 - 5000 Hz (CH1-2)
Highpass filtering: 50 - 500 Hz (CH3-4)
Lowpass filtering: 50 - 500 Hz (CH5) 12dB / 24dB
Optioneel bass-remote controller (HD-RLC of MHD-RLC)
Afm: 260 x 52 x 180 mm
Extra informatie:
The XDM700/5 is ideal for a complete audiophile-grade, subwoofer + four satellite system, and fits comfortably in just about any vehicle or vessel. With this incredible little amplifier, you can drive two pairs of quality component speaker systems with plenty of clean power (75 Watts RMS x 4 at 4 Ω), while also generating a solid 300 Watts RMS 2 ohms of power for a subwoofer system. The technology that makes this much power possible in such a small chassis is our high-speed NexD™ switching amplifier design.
Suitable for car or boat installations, the XDM700/5 is built with marine-grade materials and features an exclusive, dual-mode input filter for noise-free performance in boats or cars. Automatic turn-on capability (via signal sensing or DC-offset sensing) is also onboard for easy factory system upgrades.
The XDM700/5 includes a 12 dB / octave high-pass filter for one main channel pair, a 12 dB octave high-pass or bandpass filter for the other main channel pair, plus a variable slope low-pass filter for its subwoofer channel. All three filters offer continuously variable cutoff frequency selection from 50-500 Hz. This amplifier's filters can also be configured as a true 3-way crossover, with a low-pass filter for the subwoofer channel, a bandpass filter on Ch. 3 & 4, and a high-pass filter on Ch. 1 & 2. An "x10" multiplier switch on the Ch. 1 & 2 high-pass filter allows its cutoff frequency to be adjusted from 50-500 Hz or 500-5000 Hz. With the addition of an optional HD-RLC or MHD-RLC (water-resistant) remote level controller (each sold separately), you have the ability to adjust the level of all amplifier channels or just the subwoofer channel directly from the driver's seat or helm.

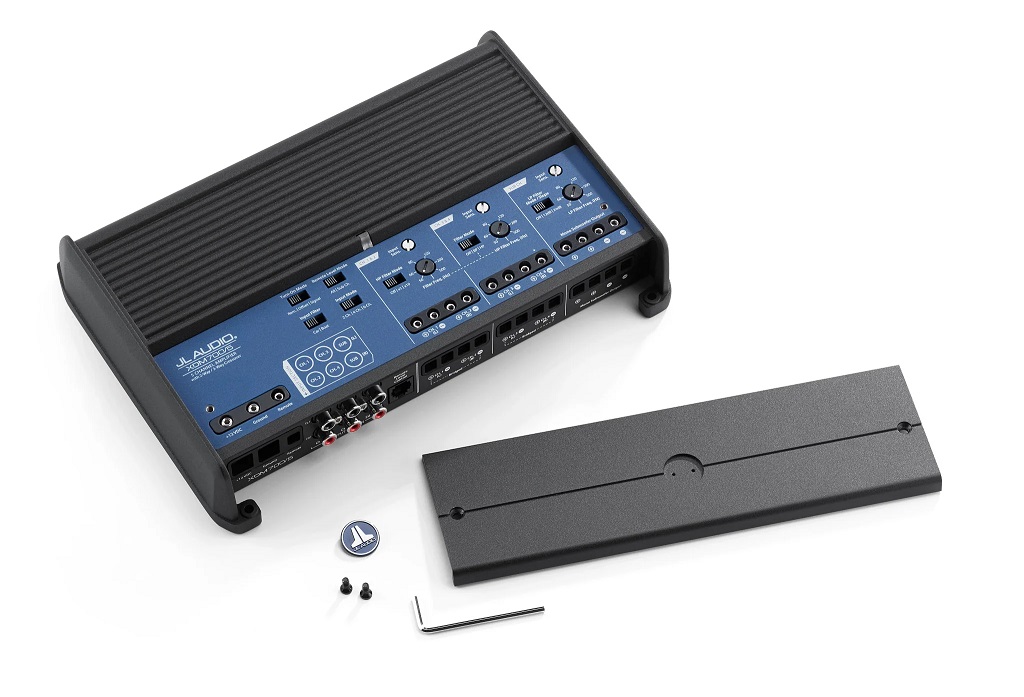

Finished in a sleek, black powder-coat, all controls are protected beneath a gasketed, removable top cover for easy access.
