Productomschrijving

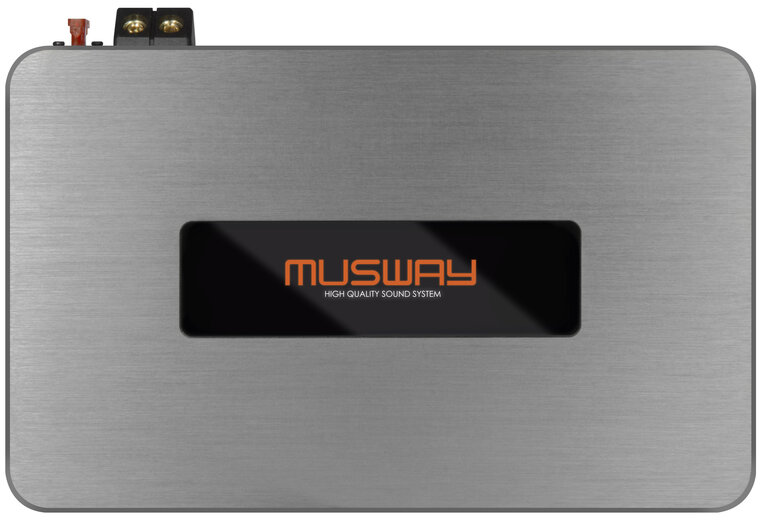

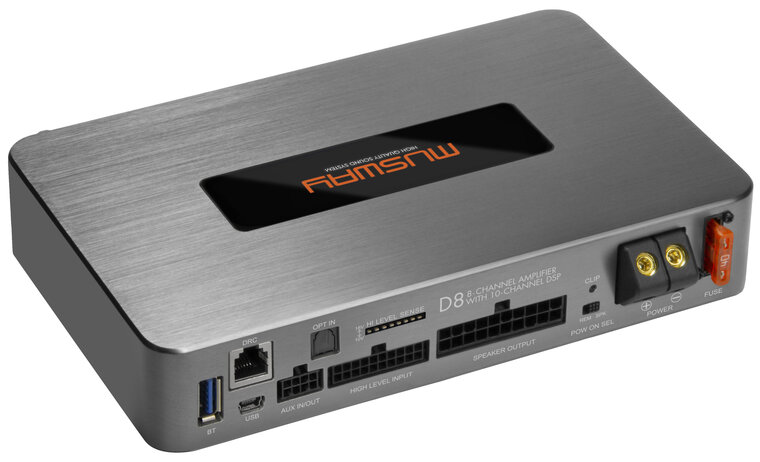

De D8v4 van Musway is een wel heel compacte 8 kanaals DSP versterker die eenvoudig met je bestaande audio systeem of een upgrade kan worden verbonden. Dankzij de Texas Instruments High End 10 kanaals DSP die is ingebouwd kun je eenvoudig de luidsprekers en woofer configureren naar wens. Totaal vermogen van 800 watts RMS zorgt voor een sublieme aansturing van het hele sound systeem en door toepassing van technieken zoals EPS ofwel high level ingangen met Error Protection System zal er nooit vanaf de versterker informatie worden gestuurd naar het geheugen van de Auto zelf.
1.1 Punten Absolute Spitzenklasse Car & Hifi uitgave 02-2025
Universeeel toepasbare DSP versterker voor scherpe prijs.
Music Is The Way
MusWay D8v4 (Version 4)
8 kanaals klasse D versterker met 10-kanaals DSP
8 x 70 watts RMS 4 ohms (8 x 82 watts RMS 13,8V)
8 x 100 watts RMS 2 ohms (8 x 142 watts RMS 13,8V)
4 x 200 watts RMS 4 ohms gebrugt mono (284 watts RMS 13,8V)

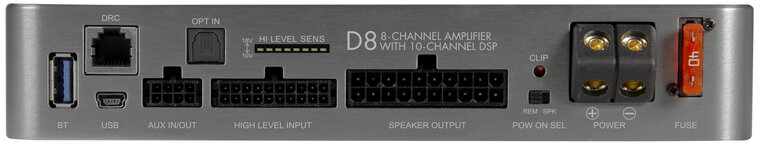

2 x Aux/RCA ingangen
1 x Optische ingang/Stereo
8 x luidspreker uitgang
2 x voorversterker uitgang RCA 4 Volts RMS (via DSP)
Afm: 205 x 37 x 127 mm
Extra informatie:
With the D8v3 model MUSWAY delivers an extremely compact sound power plant in a shapely housing with astonishing 8 channels, including a freely configurable 10-Channel DSP. Each channel is bridgeable and generates a 2 ohms power of 75 Watts RMS, thus a total of 600 watts RMS. In principle, the D8 Amp offers the same features as the M6, but with two amplified outputs and two additional DSP channels. The compact sound miracle is particularly suitable for loudspeaker systems in 3-Way active operation. With the DSP, the crossover frequencies, time alignment and frequency corrections can be perfectly adjusted.
As a bonus on top in this configuration a bridged output with 150 watts RMS to 4 Ohms for a mid-size subwoofer would be available. The centerpiece is the state-of-the-art DSP chip ADAU1452 from Analog Devices, which was fine-tuned by the Musway engineers and leaves no audiophile wishes unfulfilled. Also on board is a flexible multi-level input with Error Protection System, a soft-clipping speaker protection for 2 Ohm operation and an automatic turn-on function, so that the connection to OEM radios does not cause any problems.
• Intelligent High Level Input (Error Protection System)
• Start-Stop ready, Auto Turn-On
• Burr-Brown converters (PCM3168A) and Analog Devices DSP (ADAU1452)
• Dual 32bit, 330 MHz DSP technology, controllable via new V3 PC software or V3 App
• Soft-Clipping (power attenuation) in 2 Ohm operation
• Signal-to-noise Ratio ≥90dB
• Frequency Response 15 Hz – 22 kHz (-3dB)
• THD ≤0,1% (1 kHz, 4Ω, 90% Power)
• External Bluetooth® USB-Dongles (BTS & BTA2) for Audio Streaming & App Control (optional)
• Digital remote control (DRC1) with OLED display for controlling various DSP functions (optional)
• QUICKCONNECT Terminal to connect all MUSWAY 2 + 2 Ohms Subwoofer-Systems
