Bij Car Hifi Twente krijgen we steeds meer vragen naar plug & play oplossingen voor de Trucks waaronder de Scania. Hiervoor hebben we een pasklare oplossing met de producten van Phoenix Gold kunnen samenstellen voor een leuke sound upgrade.

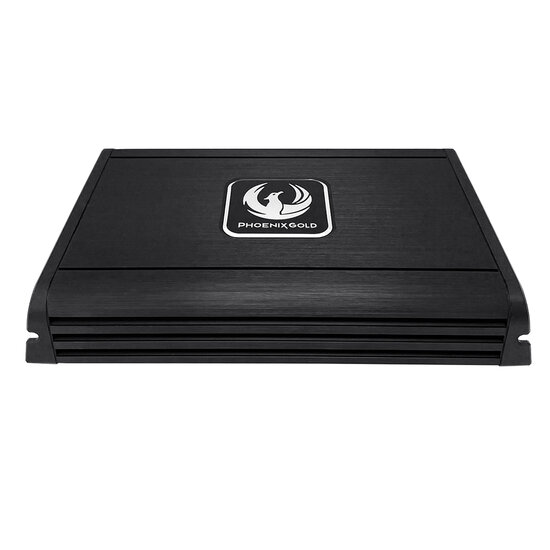

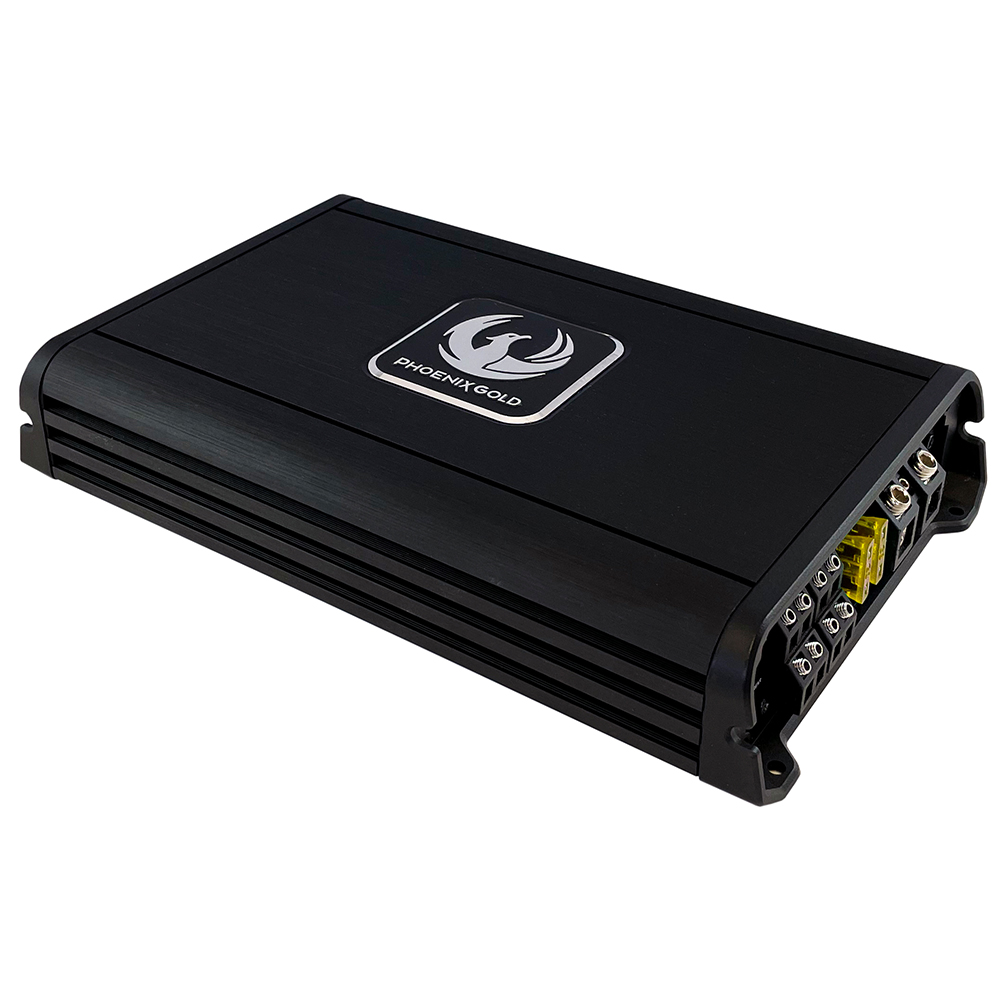

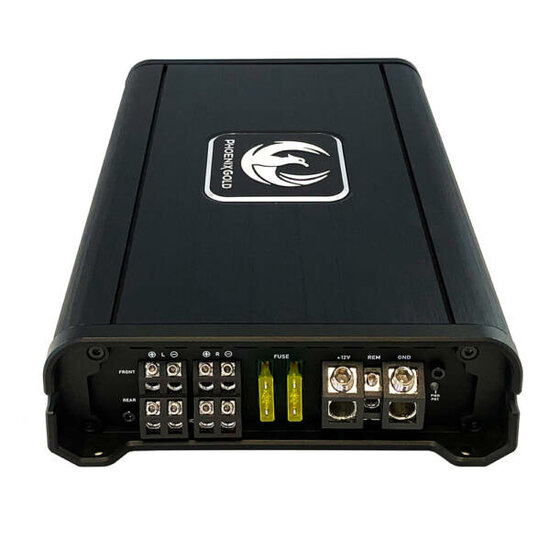

PHOENIX GOLD ZT6004R
4 kanaals 24 volts versterker
Frequentie bereik: 12 - 22.000 Hz
Bedrijfspanning: 19 - 31 Volts
4 x 105 watts RMS 4 ohms
4 x 175 watts RMS 2 ohms
2 x 350 watts RMS 4 ohms mono gebrugt
Lowpass filter: 50 - 400 Hz / 12dB
Highpass filter: 50 - 400 Hz / 12dB
RCA en auto high level ingangen (ook via RCA)
RCA uitgang voor extra versterker
Inclusief bass-remote controller
Afm: 254 x 49 x 160 mm

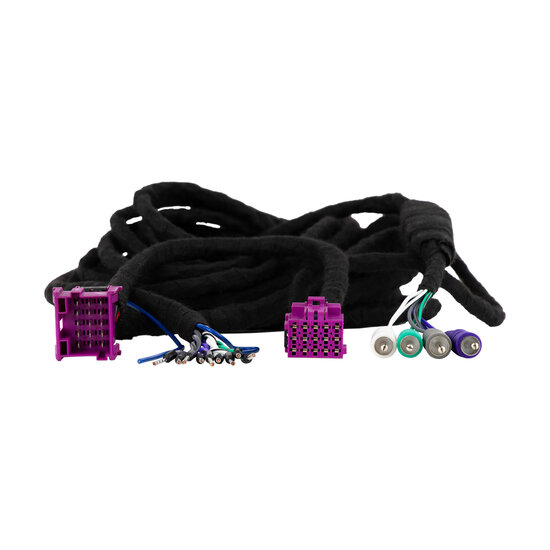

Phoenix Gold ZTT-SCN1
Fitment
The ZTT-SCN1 harness is designed specifically for Scania trucks from 2024 onward. For a detailed list of compatible models, refer to our Vehicle Application List.
Connectors
• 1x 15-Pin Female Connector
• 1x 15-Pin Male Connector
• 1x ISO Female Connector (Black)
• 1x ISO Female Connector (Brown)
• 1x ISO Male Connector (Brown)
| Product NR |
Merk |
Model |
Bouwjaar |
Geschikt voor |
| ZTT-SCN1 |
Scania |
S-Series |
2024 – (I) (Facelift) |
Basic Sound System |
| ZTT-SCN1 |
Scania |
R-Series |
2024 – (II) (Facelift) |
Basic Sound System |
| ZTT-SCN1 |
Scania |
G-Series |
2024 – (II) (Facelift) |
Basic Sound System |
| ZTT-SCN1 |
Scania |
P-Series |
2024 – (II) (Facelift) |
Basic Sound System |
| ZTT-SCN1 |
Scania |
L-Series |
2024 – (I) (Facelift) |
Basic Sound System |
| ZTT-SCN1 |
Scania |
XT-Range |
2024 – (I) (Facelift) |
Basic Sound System |
The Phoenix Gold ZTT-SCN1 T-Harness makes it easy to integrate an aftermarket amplifier into 2024→ Scania trucks. Designed for use with our ZT6004R amplifier, this plug-and-play harness delivers high-level audio signals and speaker connections to your amplifier – without any cutting, splicing, or damage to the factory wiring.
Please note: Power and ground connections are omitted and must be wired separately.
Installation Made Simple:
1. Disconnect the OEM harness from your head unit.
2. Connect the ZTT-SCN1 cable to the OEM harness, then plug the other end into your head unit.
3. Link the setup to your ZT6004R amplifier.
4. Install power and ground wire (sold separately). And your installation is complete!
The Phoenix Gold ZTT-SCN1 is crafted for audio integration, designed with superior features to ensure the best performance and easiest installation.
Why choose the ZTT- harness?
Enhanced signal transfer and noise reduction: Twisted high-level cables and larger speaker output cables ensure the best signal transfer while minimizing noise, giving you clear and precise audio quality.
Protected and streamlined design: All wires are wrapped in tape for added protection and easier handling, with no loose or unnecessary wires or connectors to complicate the setup.
