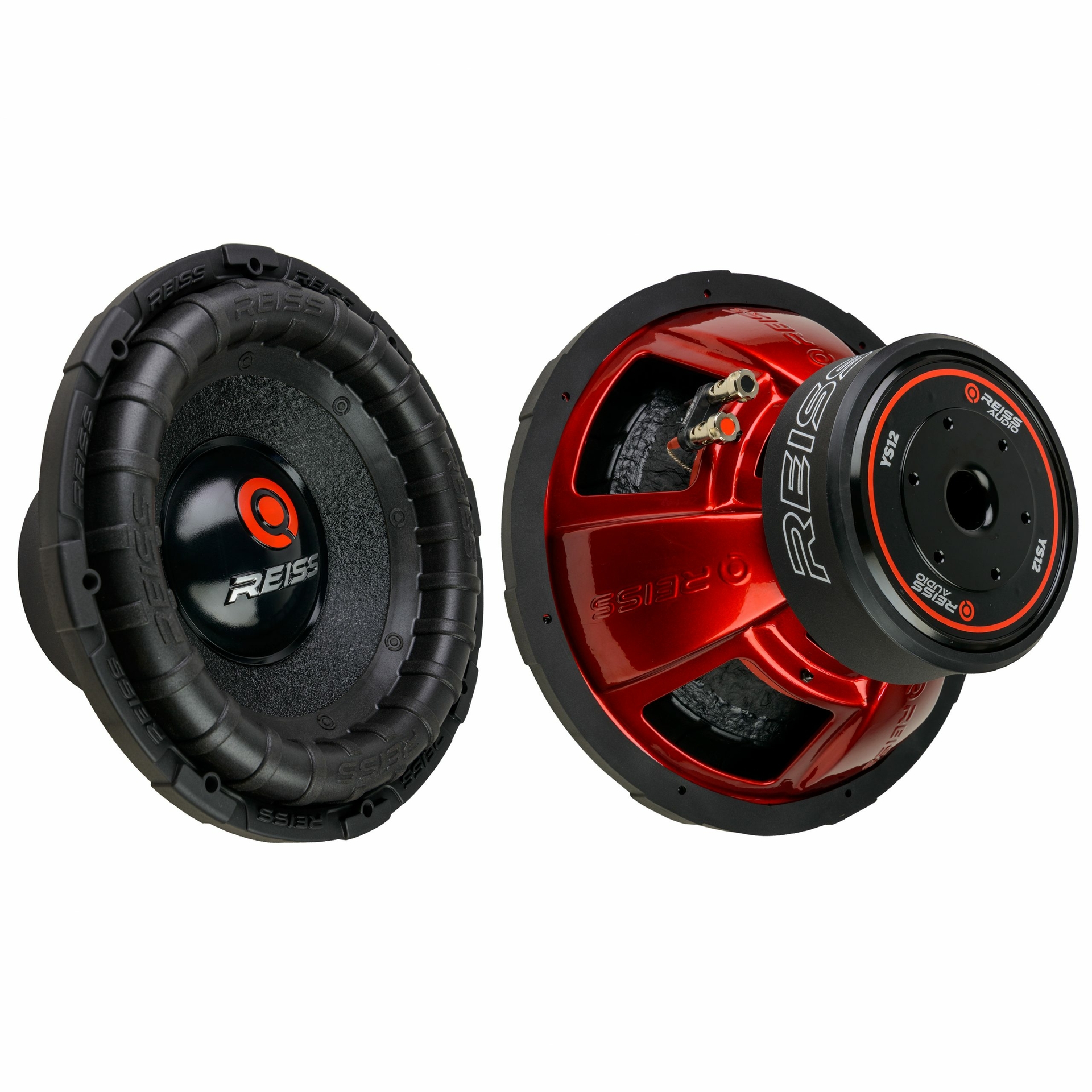

Reiss Audio RS-YS12D4
12 inch / 30cm subwoofer
Frequentie bereik: 38 - 1000 Hz
600 watts RMS / 2000 watts MAX
Impedantie: DVC 4 ohms (2 of 8 ohms)
Gevoeligheid: 88 dB
Inbouwopening: 282 mm
Inbouwdiepte: 148 mm
Extra informatie:
The Reiss RS-YS12.D4 is a powerful and precise 12-inch subwoofer featuring a 4 + 4 Ohm impedance, giving you great flexibility when choosing an amplifier and wiring configuration (2 or 8 ohms). With a power handling of 600 WATTS RMS (2000W max), it's ready to deliver massive bass under extended loads.
The low resonance frequency of 36.48 Hz makes the RS-YS12.D4 ideal for deep bass reproduction, while the frequency range of 38 to 1000 Hz provides a wide operational scope. With a sensitivity of 88 dB and a QTS of 0.626, this driver is well-balanced for both sealed and ported enclosures.
The robust construction includes a large voice coil (63.8 x 35 mm) for increased durability and heat resistance. With a weight of 6.9 kg, a mounting depth of 148 mm, and an outer diameter of 318 mm, it’s a serious driver that requires space – but delivers substantial bass output.
The Reiss RS-YS12.D4 is a premium choice for anyone looking to build a powerful bass system with maximum control, deep frequency response, and excellent installation flexibility.
