Productomschrijving

"Bring your SOUND to the MAX with SoundMax car audio"

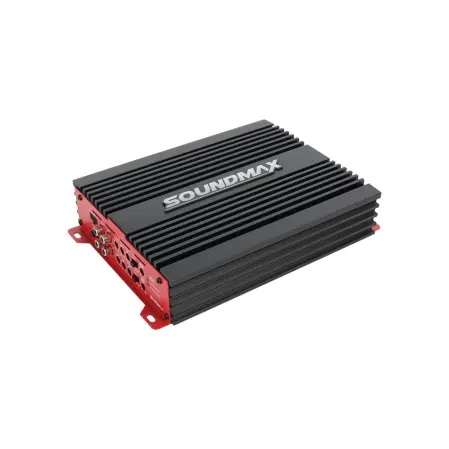

SoundMax SX-N300.4

4 kanaals klasse AB versterker
Frequentie bereik: 10 - 20.000 Hz
4 x 60 watts RMS 4 ohms
4 x 75 watts RMS 2 ohms
2 x 150 watts RMS 4 ohms mono gebrugt
Lowpass filter: 40 - 400 Hz
Highpass filter: 100 - 1000 Hz
Bass boost: 0 - 12 dB biij 45 Hz
Power / Protect / Clipping LEDS

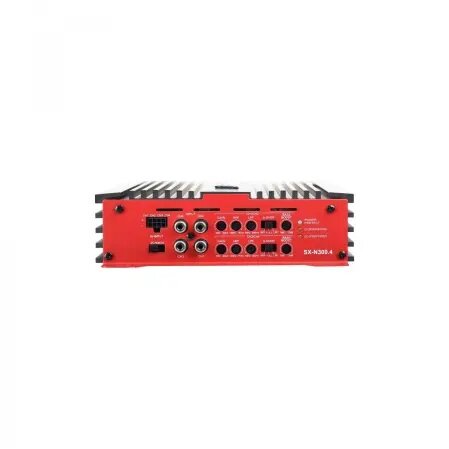

High level & RCA low level ingangen
Afm: 262 x 53 x 182 mm

Extra informatie:
Soundmax SX-N300.4 is a compact and well-balanced 4-channel Class AB amplifier, designed for those who want to upgrade their car audio system with improved control, clearer sound reproduction and reliable power output. With 60 WATTS RMS per channel at 4 ohms, it is an excellent choice for front systems, rear speakers or simpler active setups where sound quality is the main focus.

The amplifier delivers 75 WATTS RMS per channel at 2 ohms and can be bridged to provide 150 WATTS RMS x2 at 4 ohms, offering flexibility for various speaker configurations. The classic Class AB design contributes to a warm, natural and well-balanced sound across the full frequency range of 10–20,000 Hz, making it ideal for music listening where detail and musicality are essential.

The SX-N300.4 is equipped with both high-pass filters and low-pass filters, making it easy to adapt the amplifier to different types of speakers and installations. The high damping factor above 170 provides excellent control over the drivers and contributes to a tight and responsive sound, especially in the midbass range.

With an operating voltage of 9–15 VOLTS and an input sensitivity of 0.2–6 VOLTS, the SX-N300.4 integrates smoothly with both factory head units and aftermarket sources. A signal-to-noise ratio of 90 dB ensures clean signal delivery and low noise levels even at higher volumes.

The robust chassis measures 262 x 182 x 53 mm, making the amplifier easy to place while still offering effective cooling for stable long-term operation. Soundmax SX-N300.4 is an excellent choice for those seeking affordable Class AB quality, reliable power and a natural sound character in a compact 4-channel amplifier.
