Productomschrijving

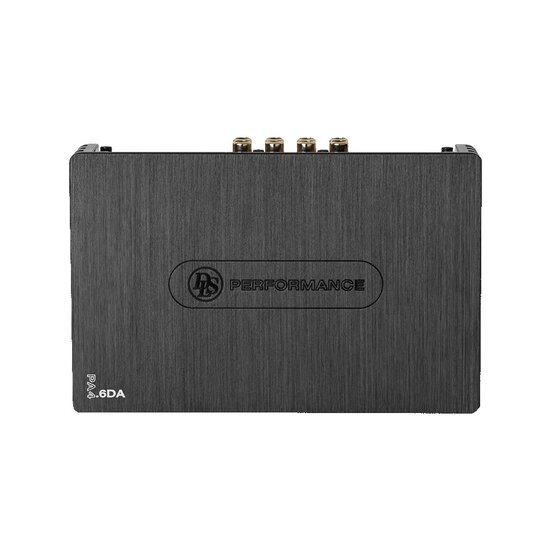

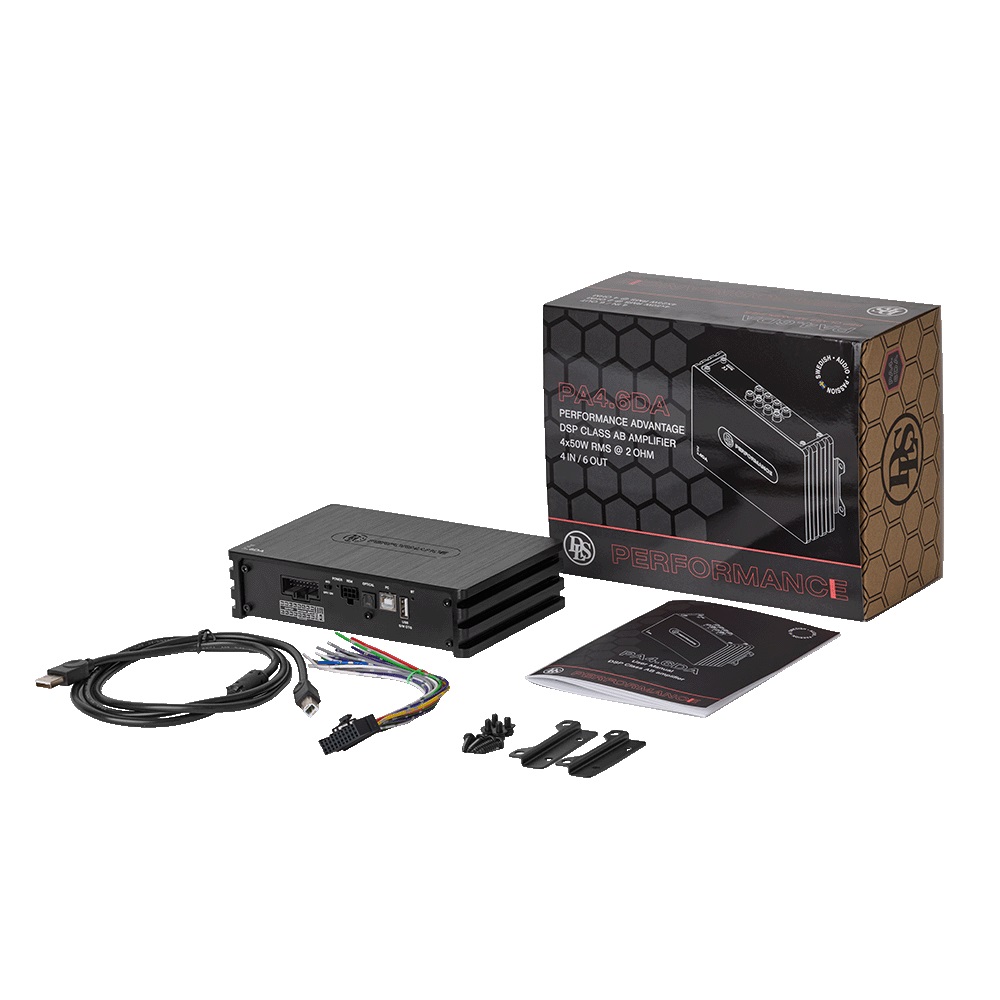

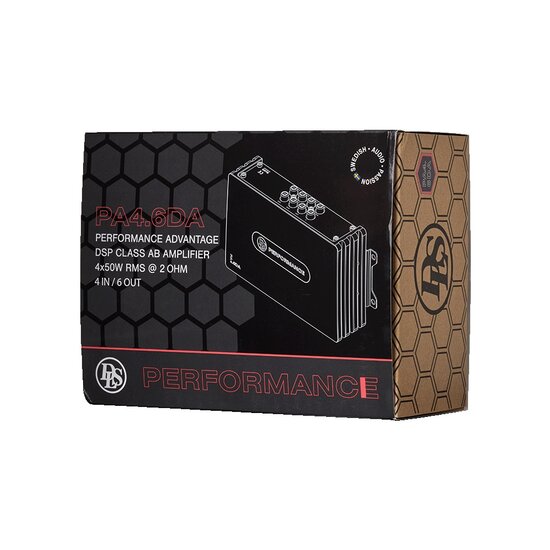

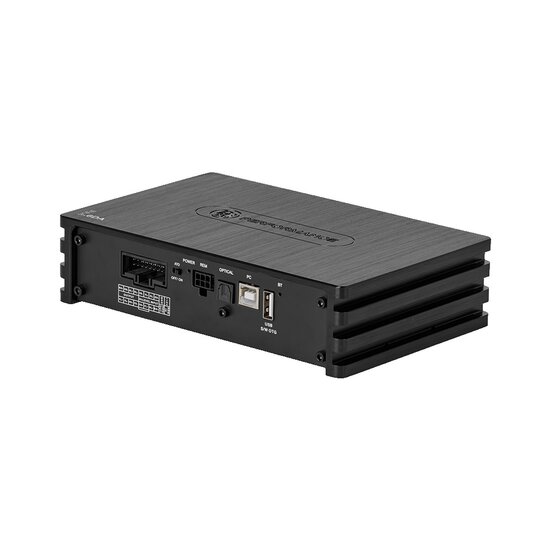

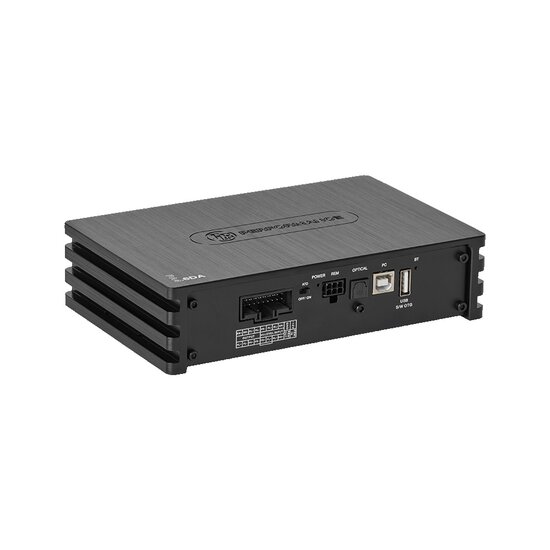

DLS Performance Advantage PA4.6DA
4 kanaals versterker met 6 kanaals DSP
Klasse AB versterker techniek
Frequentie bereik: 20 - 20.000 Hz
4 x 25 watts RMS 4 ohms
4 x 50 watts RMS 2 ohms
Bluetooth 5.1
Afm: 199 x 48 x 116 mm
Extra informatie:
A compact 6 channel digital signal processor with an integrated Class AB power amplifier. Signal processing and amplification are housed in a single chassis, with a focus on the typical DLS character: warm, natural sound with low listening fatigue.
A 24 bit / 192 kHz Cirrus Logic platform handles the DSP. Each channel can be adjusted with a 31 band equaliser, flexible crossover filters and time alignment in 1 cm steps. This provides the tools needed to correct speaker response, deal with the car interior and establish a stable centre image at the listening position.
PA4.6DA is built to integrate cleanly with modern OEM systems. A 4 channel high-level input with Smart Load Circuitry presents a suitable load to factory head units with impedance monitoring, and additional inputs include RCA, optical digital and Bluetooth 5.1. Six RCA DSP outputs are available for external amplifiers. Configuration is carried out via a Windows based USB interface, and up to ten presets can be stored in the internal memory.
Key specifications
Type: 6 channel DSP with integrated Class AB amplifier
DSP: Cirrus Logic 24 bit, 192 kHz
Power output: 4 x 25 W RMS (4 ohm), 4 x 50 W RMS (2 ohm)
Frequency response: 20 to 20 000 Hz
Signal to noise ratio (A weighted): > 100 dB
EQ: 31 band GEQ or PEQ per channel, -18 to +12 dB in 0.1 dB steps
Crossover types: Bessel, Butterworth, Linkwitz Riley
Crossover slopes: 6 to 48 dB per octave
Time alignment: 0 to 15 ms in 0.021 ms steps (0 to 519 cm)

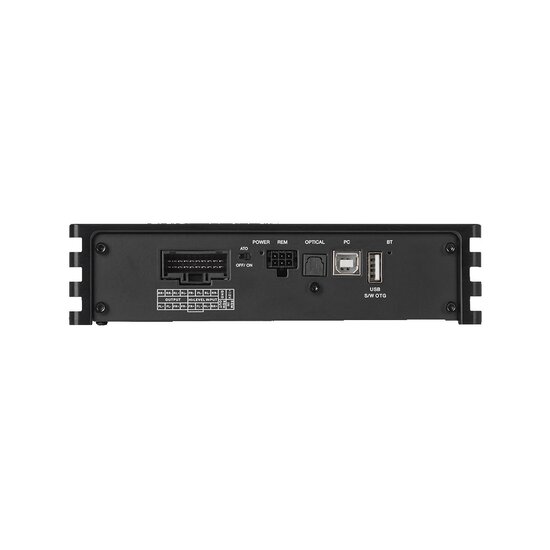

Inputs: 4 ch high-level with Smart Load Circuitry, 2 ch RCA low-level, optical digital,
Bluetooth 5.1

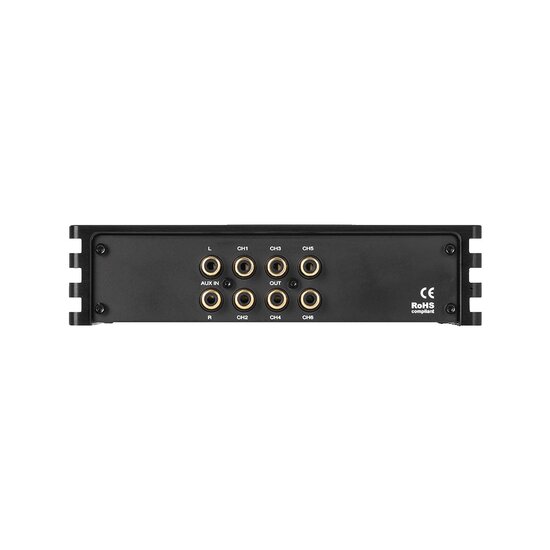

Outputs: 6 ch RCA DSP output, 4 ch high-level output
Memory presets: 10
Auto turn on: Yes
PC connection: USB 2.0, Windows XP to Windows 11
