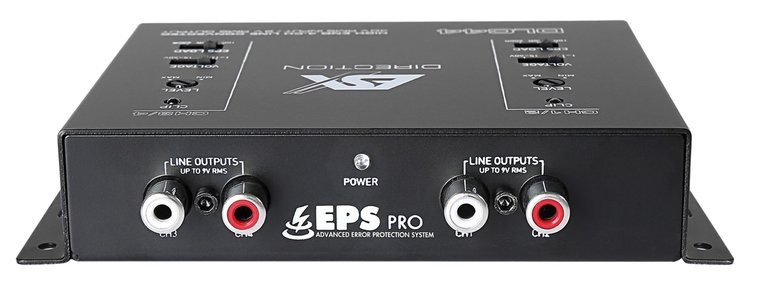

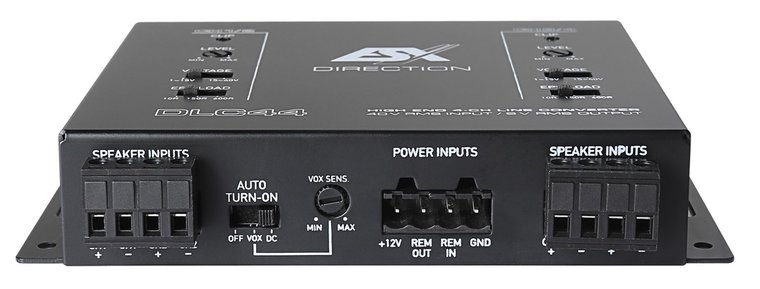

ESX DIRECTION DLC44 high low converter 4 kanaals

ESX maakt het aanbod weer wat breder en komt binnen de DIRECTION serie nu met 2 hoogwaardige universeel toepasbare high-low converters. Deze DLC kunnen tot 400 watts - 40V/RMS high level ingang signaal verwerken en zijn voorzien van clipping leds voor het afstellen. EPS PRO beveiliging en automatische inschakeling aanwezig, tevens remote 12V en een Jumper voor (AARDE RUIS) eliminatie.

Car & Hifi 01/2022 Product van het jaar award.

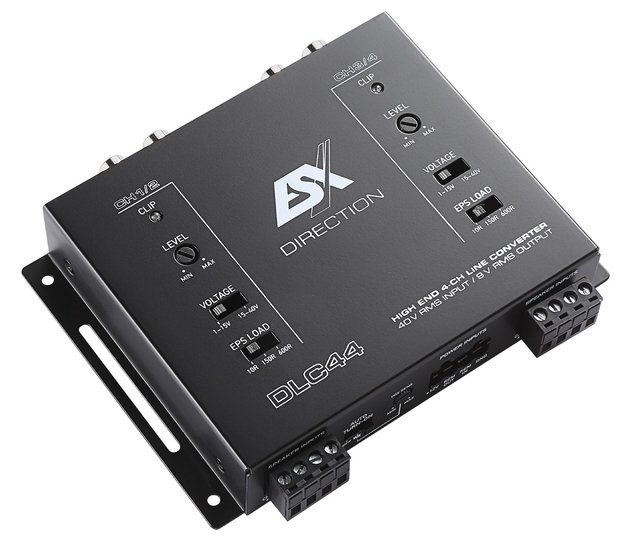

ESX DIRECTION DLC44

4 kanaals high end line converter
Frequentie bereik: 5 - 57.000 Hz (Hi-RES)
High / low converter HD power supply
EPS PRO schakelbaar 10 ohms - 150 ohms en 600 ohm
Auto turn on (DC offset / signaal)
2 x clipping leds en 12v remote uitgang
Aarde ruis eliminatie (jumper)
Afm: 100 x 28 x 140 mm

Extra informatie:

Any chain is only as strong as its weakest link. This also applies to audio components in vehicles. Therefore, if you want to upgrade your system with amplifiers, you are well advised to ensure a good signal connection to the original radio.

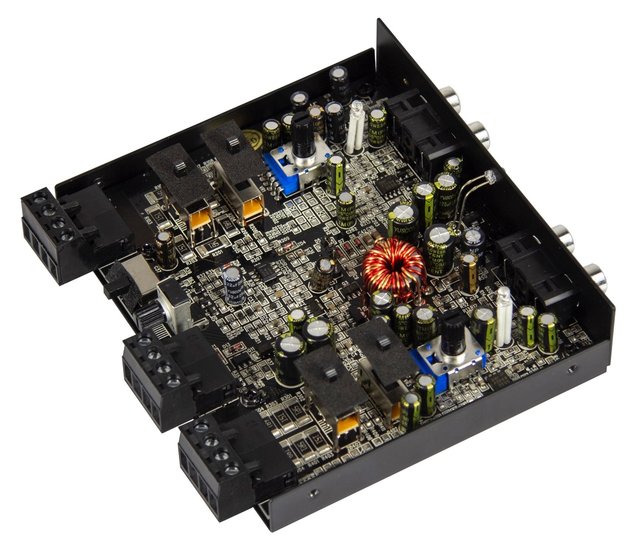

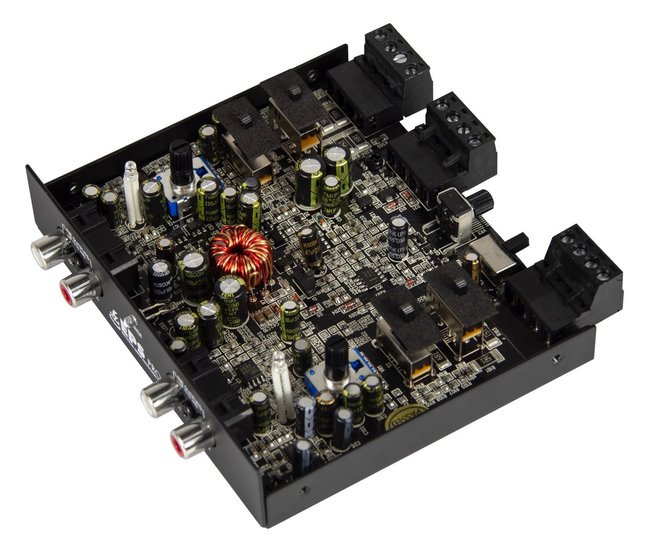

The DLC signal converters developed in Germany are specialized in two things: problem-free and error-free integration into the factory systems of modern vehicles and an absolutely high signal fidelity. The heart of this is the specially developed, continuously regulated, symmetrical HD power supply. After all, every audio circuit is only as good as its power supply unit, since the audio signal always consists of 100% of the operating voltage. Together with the use of high-quality operational amplifiers, the ESX developers have succeeded in achieving excellent sound quality. The result is not only evident in the gigantic signal-to-noise ratio of an incredible 122dB and an ultra-low distortion factor of 0.002%, but also in the linear frequency response of 5-57,000 Hz at -1db.



Another special feature of the converter is that it can be connected directly to OEM amplifiers. Even outputs of over 400 watts RMS (> 40V RMS) are no problem. The improved, switchable diagnosis system EPS PRO allows a selection between 10, 150 or 600Ω at the entrance, in order to adapt even problematic vehicles such as BMW or VW. In addition, both models have a clipping display, start-stop capability, auto turn-on and remote out.
