Productomschrijving
Volledig nieuw ontwikkelde actieve subwoofer van ESX Car Audio Systems op basis van de Q200A die 2 jaar lang een enorm succes was is er nu deze geheel nieuwe versie Q202A en de Q201A. Alles wat verbeterd kon worden zoals bijvoorbeeld de stroom aansluitingen en akoestiek zijn aangepast en ook het hele design is veranderd, strakker en cleaner.

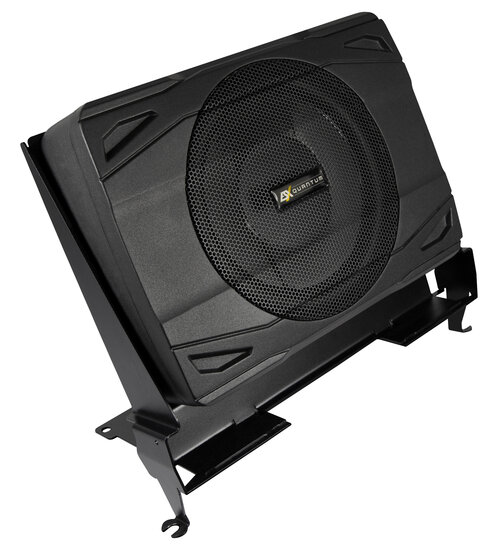

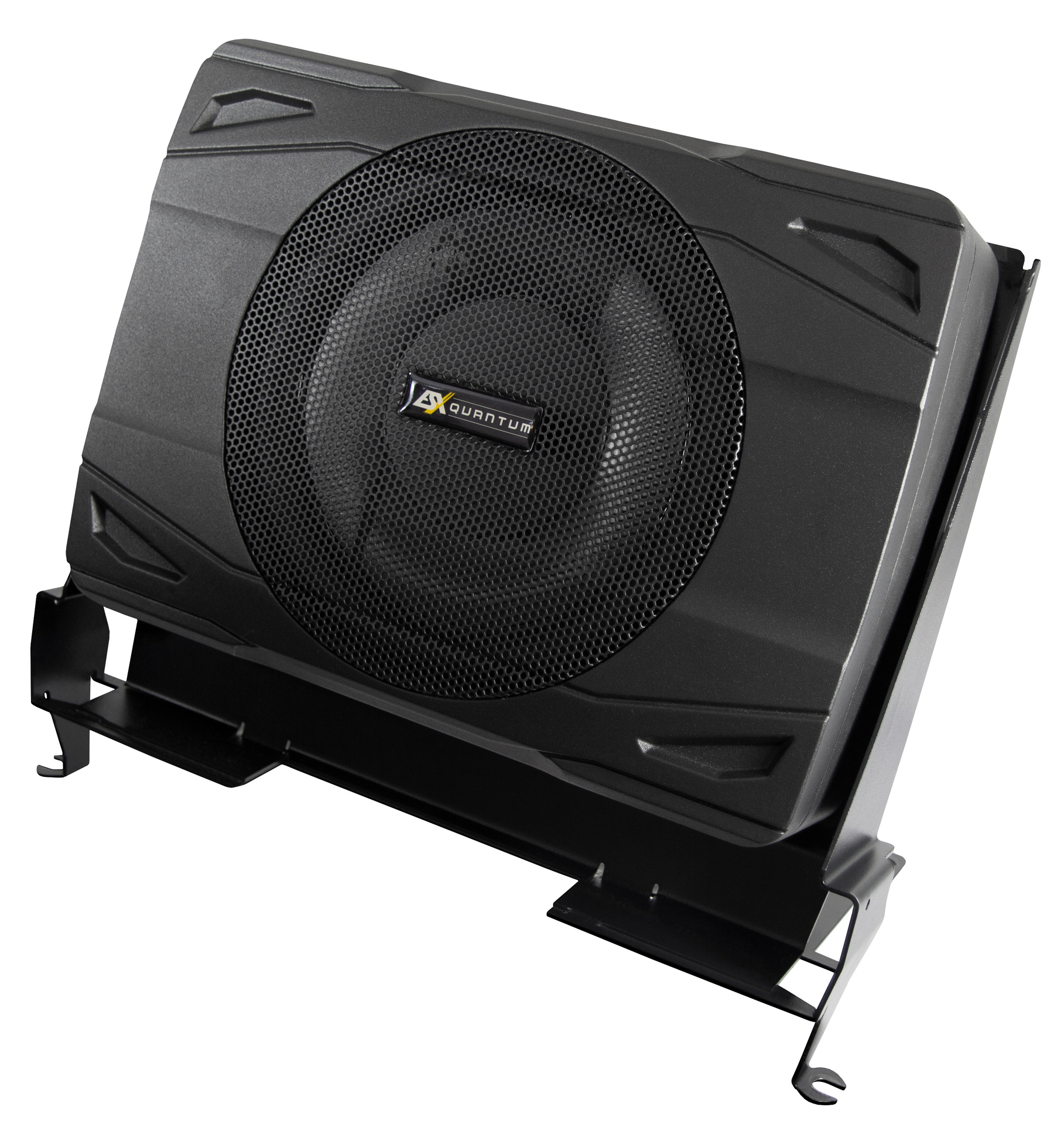

De QXF201P van ESX Car Audio Systems Germany is momenteel een van de allerkleinste 8 inch "underseat" subwoofers op de markt en in deze variant custom fit voor de Ducato series.
ESX Quantum QXF201P "Passieve woofer"
20 cm (8”) custom fit subwoofer
Montage onder het middenconsole
100 watts RMS / 200 watts MAX
Impedantie: 2 ohms (mono versterker benodigt)
Massieve aluminium behuizing

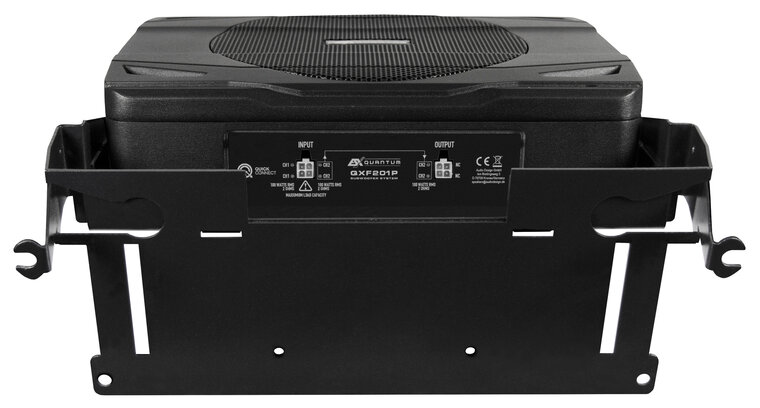

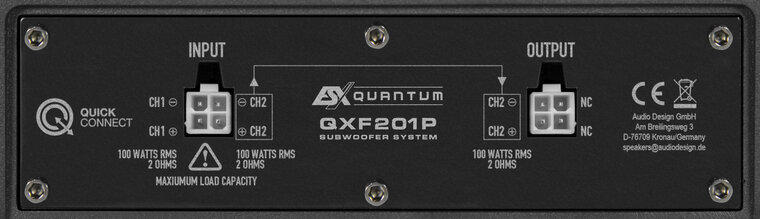

Input molex & output voor eventuele 2e identieke woofer
Compleet met houder en montage materiaal
Afm: 340 x 170 x 290 mm inclusief houder
Passend voor de volgende modellen:
Fiat Ducato F8 (ab 2021)
Fiat Ducato III (Typ 250, ab 2006), Ducato IV (Typ 290, ab 2015)
Citroën Jumper II (Typ 250, ab 2006), Jumper III (Typ 290, ab 2015)
Peugeot Boxer II (Typ 250, ab 2006), Boxer III (Typ 290, ab 2015)
Peugeot Boxer II (Typ 250, ab 2006), Boxer III (Typ 290, ab 2015)
Opel Movano III (ab 10/2021)
Extra info:
The QUANTUM QXF201P is the passive version of the well-known QXF201A active system - suitable for Duacto, Boxer and Jumper, but without the integrated amplifier. The passive version is useful if you plan to install a separate multi-channel amplifier for the system, which will meet the need for more performance and bass even better. Digital DSP amplifiers are often installed in mobile homes, which have 5 or 6 channels, one of which is intended for a subwoofer. This is then simply used for the QXF201P. Amplifiers with a Quick Connect connection, such as the ESX DSP power amplifier SE800.6DSP, are also perfect for this purpose. The connection cable supplied is simply plugged into the output socket for channel 5/6 - done.
If you want even more bass performance, you can configure your system so that you plan to have two subwoofers at once. For this purpose, the QXF201P console subwoofer has a special Quick Connect output to which the second subwoofer can be connected quickly and easily. Preferably, an ESX subwoofer with a Quick Connect connection should be chosen, as everything has already been preconfigured for this. The pro tip: If there is space under the driver or passenger seat, the Q201P can be mounted there. It is identical to the QXF201P, but without the steel frame. The connection is extremely simple: plug it into the QXF201P and you're done. Now bass lovers who like to hear and feel music with depth in their motorhome will get their money's worth.
