Productomschrijving
De JD-serie zijn compacte en fraai gestylde versterkers met clean power technologie waarbij de focus ligt op stabiel en zuiver vermogen met weinig vervorming dit mede dankzij NexD high speed switching technologie waardoor deze versterkers super efficiënt zijn.

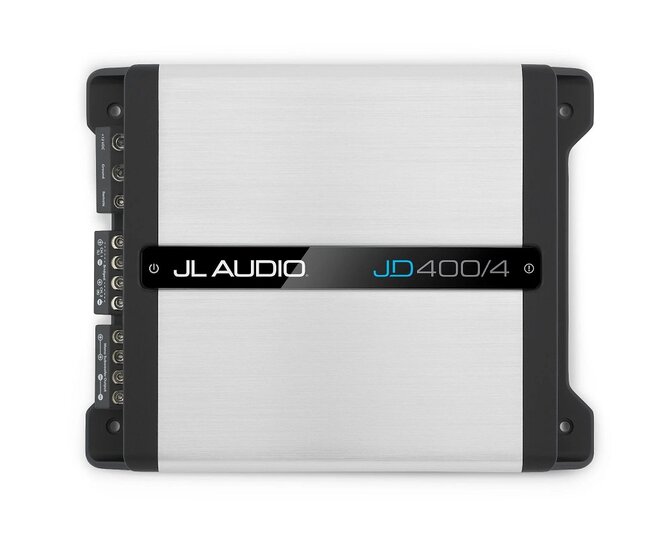

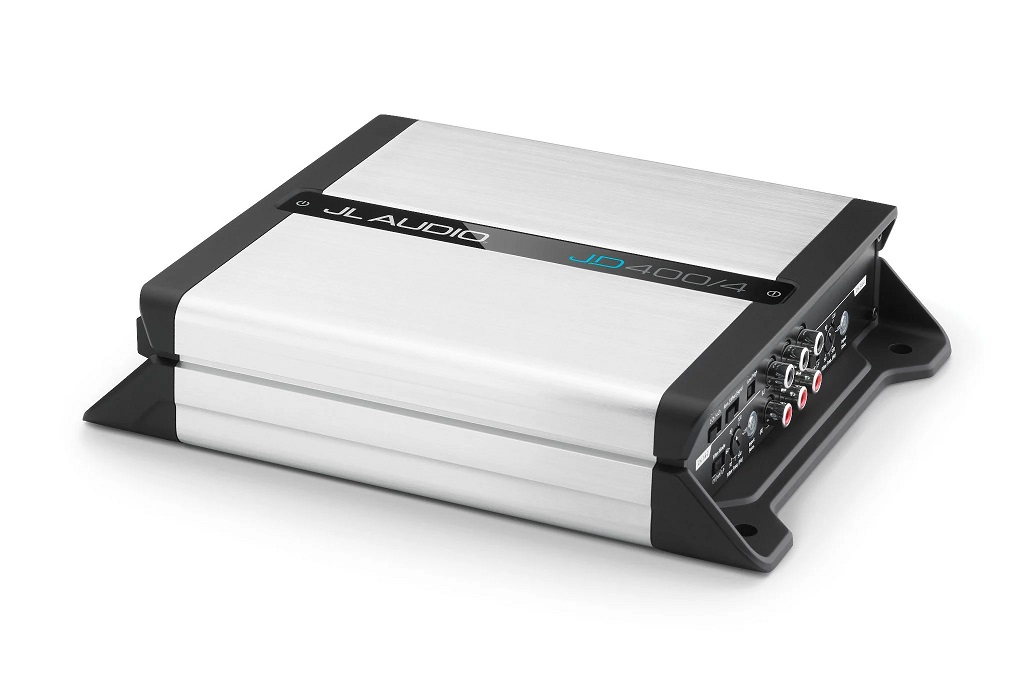

JL AUDIO JD400/4
Klasse D 4 kanaals versterker
Frequentie bereik: 12 - 22.000 Hz
4 x 75 watts RMS 4 ohms
4 x 100 watts RMS 2 ohms
2 x 200 watts RMS 4 ohms mono gebrugt
High / Lowpass filters: 50 - 500 Hz / 12 dB
Afm: 242 x 53 x 180 mm
Extra informatie:
Utilizing our exclusive NexD™ high-speed switching technologies, the JD400/4 amplifier is engineered to deliver loads of clean power, with excellent efficiency and low distortion. This little guy churns out 100 watts of audio from each of its four channels into 2 ohms (14.4V, 1% THD) and is fully bridgeable, so it can be used as a 3-channel amplifier, or as a 2-channel amplifier producing a whopping 200W x 2 into 4 ohms.

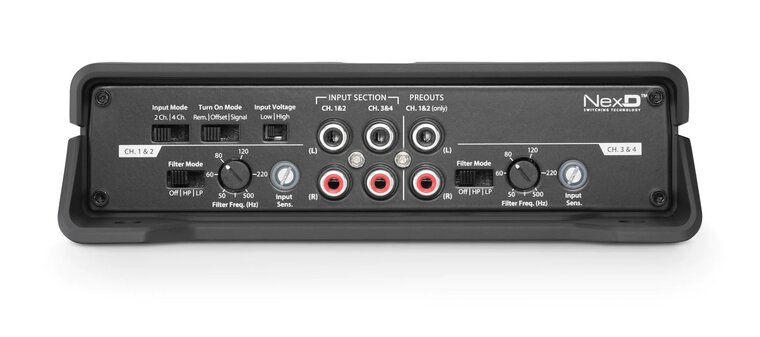

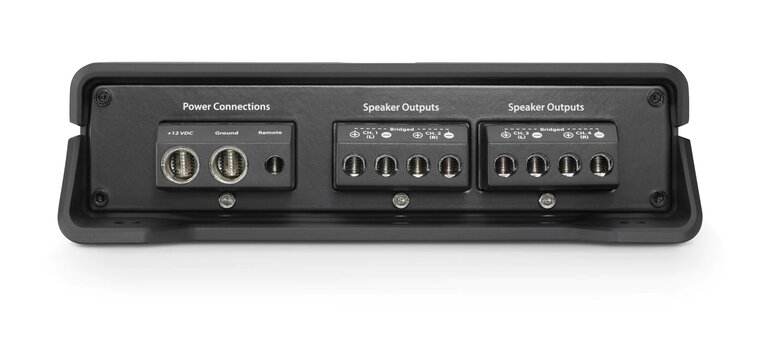

The JD400/4’s controls can be found on the input panel of the amplifier, with all speaker and power connections located along the opposite end of the extruded aluminum chassis. Signal processing features include high or low-pass 12 dB / octave filters (defeatable) for each channel pair, with continuously variable frequency selection from 50-500 Hz, and dual-range, differential-balanced inputs capable of accepting line-level or speaker-level signals. Automatic turn-on capability (via signal sensing or DC-offset sensing) is standard equipment.
Onboard LED-clipping indicators are also included surrounding each input sensitivity control. This convenient feature lets you set your amplifier’s input sensitivity, quickly and accurately, without special equipment. You will also find a set of buffered, pass-through preamp outputs on-board, so you can pass signals to another amplifier.
