Productomschrijving
De M6v4 van Musway is een wel heel compacte 6 kanaals DSP versterker die eenvoudig met je bestaande audio systeem of een upgrade kan worden verbonden. Dankzij de Texas Instruments High End DSP die is ingebouwd kun je eenvoudig de luidsprekers en woofer configureren naar wens. Totaal vermogen van maar liefst 630 watts RMS zorgt voor een sublieme aansturing van het hele sound systeem en door toepassing van technieken zoals EPS ofwel high level ingangen met Error Protection System zal er nooit vanaf de versterker informatie worden gestuurd naar het geheugen van de Auto zelf.
Car & Hifi uitgave 01/2025 Spitzenklasse 1.1 Punten
Mini DSP versterker voor OEM radio en universele toepassingen
Music Is The Way

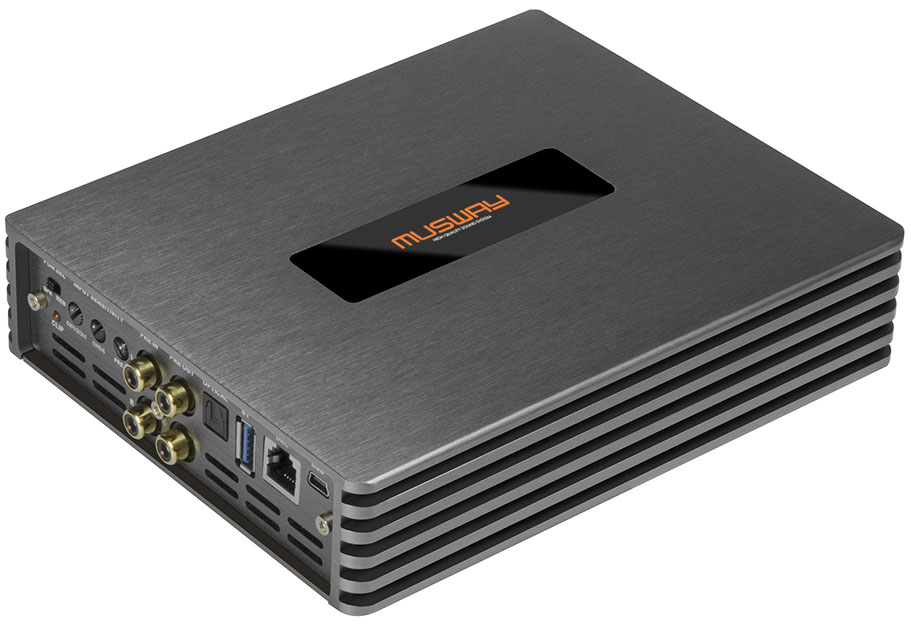

MusWay M6v4-EVO (Met connectie kabel met open einde)
6 kanaals klasse D versterker met 8-kanaals DSP
6 x 80 watts RMS 4 ohms (6 x 96 watts RMS 13,8V)
6 x 150 watts RMS 2 ohms (6 x 166 watts RMS 13,8V)
3 x 300 watts RMS 4 ohms gebrugt mono (332 watts RMS 13.8V)
2 x Aux/RCA ingangen
1 x Optische ingang
6 x luidspreker ingang (high level input)
6 x luidspreker uitgang
2 x voorversterker uitgang RCA 4V / RMS (via DSP)
Afm: 200 x 44 x 150 mm
Extra informatie:
The M6v4-EVO model can surely be seen as a new milestone in amplifier construction. It is barely imaginable that a fully grown class D amplifier works in this small housing, featuring six pairwise bridgeable outputs, each with ... watts RMS per channel (at 2 Ω). A total of 630 Watts RMS are available. The compact dimensions are made possible by an elaborate 4-fold laminated board, which also effectively suppresses EMC interference due to the favorable topology - a must, especially for full-range Class D amplifiers.
The centerpiece is the state-of-the-art DSP chip ADAU1452 from Analog Devices, which was fine-tuned by the Musway engineers and leaves no audiophile wishes unfulfilled. The amplifier finds its connection via a space-saving cable harness with ISO plugs, individual Plug+Play cable sets are also available. Useful additional features include soft-clipping to protect the electronics and speakers in 2 Ω operation and the newly developed high-level input with Error Protection System. When connected to an OEM factory radio the Error Protection System ensures that no functions are impaired or error messages
are written into the vehicle memory.
• Intelligent High Level Input (Error Protection System)
• Start-Stop ready, Auto Turn-On
• Burr-Brown converters (PCM3168A) and Analog Devices DSP (ADAU1452)
• Dual 32bit, 330 MHz DSP technology, controllable via new V3 PC software or V3 App
• Soft-Clipping (power attenuation) in 2 Ohm operation
• Signal-to-noise Ratio ≥90dB
• Frequency Response 15 Hz – 22 kHz (-3dB)
• THD ≤0,1% (1 kHz, 4Ω, 90% Power)
• Separately controllable input sensitivity (Channel 1-4, Channel 5-6), Clipping LEDs
• Plug+Play with vehicle-specific cable sets
• External Bluetooth® USB-Dongles (BTS & BTA2) for Audio Streaming & App Control (optional)
• Digital remote control (DRC1) with OLED display for controlling various DSP functions (optional)
• QUICK CONNECT Terminal to connect all MUSWAY 2 + 2 Ohms Subwoofer-Systems
