Productomschrijving

"Bring your SOUND to the MAX with SoundMax car audio"

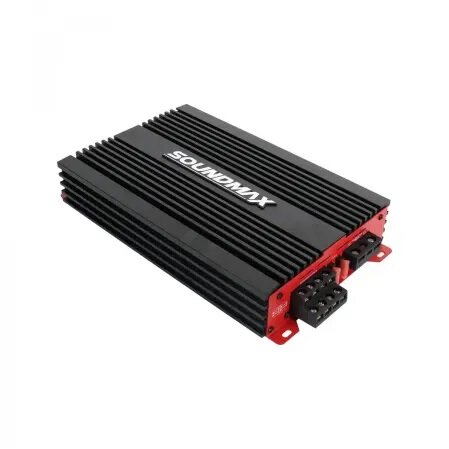

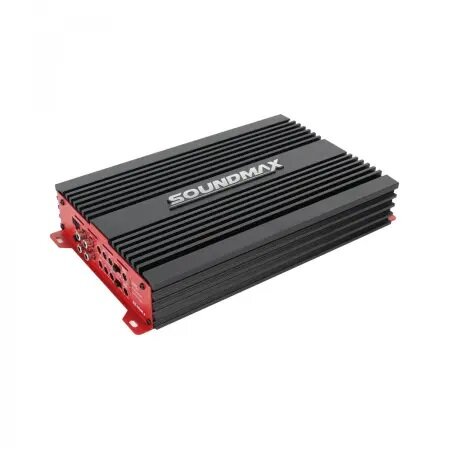

SoundMax SX-N500.4

4 kanaals klasse AB versterker
Frequentie bereik: 10 - 20.000 Hz
4 x 90 watts RMS 4 ohms
4 x 125 watts RMS 2 ohms
2 x 250 watts RMS 4 ohms mono gebrugt
Lowpass filter: 40 - 400 Hz
Highpass filter: 100 - 1000 Hz
Bass boost: 0 - 12 dB biij 45 Hz
Power / Protect / Clipping LEDS
High level & RCA low level ingangen
Afm: 310 x 53 x 182 mm

Extra informatie:
Soundmax SX-N500.4 is a powerful and well-balanced 4-channel Class AB amplifier, developed for those who appreciate musical, clean and controlled sound reproduction. With 90 WATTS RMS per channel at 4 ohms, it delivers stable power for front systems, rear speakers or active setups where sound quality and control are the main priorities.

At 2 ohms, the amplifier delivers 125 WATTS RMS per channel and can be bridged to 250 WATTS RMS x2 at 4 ohms, providing flexibility for different system configurations. The classic Class AB design offers a warm and dynamic sound signature with excellent detail across the entire frequency range of 10–20.000 Hz – perfect for music-focused systems where balance and precision matter more than extreme output.

The SX-N500.4 is equipped with both high-pass filters (100–1,000 Hz) and low-pass filters (40–400 Hz), making it easy to adapt the amplifier for everything from full-range speaker operation to simple active crossover setups. The high damping factor >170 contributes to excellent control over the drivers, especially in the midbass range, resulting in tight and responsive sound.

With an operating voltage of 9–15 Volts and an input sensitivity of 0.2–6 Volts, the SX-N500.4 integrates smoothly with both OEM head units and aftermarket sources. A signal-to-noise ratio of 90 dB ensures a clean signal without unwanted noise, even at higher listening levels.

The amplifier features a robust chassis and measures 310 x 182 x 52 mm, providing effective cooling and stable operation even during extended listening sessions. Soundmax SX-N500.4 is an excellent choice for those seeking classic Class AB sound, reliable power output and high sound quality in a solid and versatile 4-channel amplifier.
